Summary

The pipe wall thickness tester in the USA allows manufacturers to ensure dimensional uniformity of the pipes and detect any variations in wall thickness even before their shipment to customers/installation locations. Here we discuss how pipe wall thickness measuring is done, its importance, what features to look for while purchasing the tester, and how Testron’s pipe wall thickness measurement device can help in this process.

Introduction

Consistency in the wall thickness is crucial for manufacturers of plastic pipes in terms of product quality, pressure endurance, durability, and dimension. Even if the outside diameter of a pipe is measured correctly, inconsistencies in wall thickness could result in weak spots on a pipe.

A pipe wall thickness tester in the USA enables pipe manufacturers, quality control laboratories, and testing centers to measure pipe walls at various locations and detect thickness inconsistencies prior to selling defective products.

The pipe wall thickness measuring device  device of Testron Group is designed for plastic pipes such as HDPE, LDPE, and PVC. The test device offers a measurement range of 0 – 35 mm, a resolution of 0.01 mm, and diameters of Ø110 mm – Ø630 mm.

Importance of Determining Pipe Wall Thickness

While the process of pipe extrusion may be influenced by various parameters, such as extrusion die alignment, flow of material, cooling process, rate of extrusion, and process deviations.

A pipe might, therefore, have a thick wall on one side and a thin wall on the other. This problem can be easily associated with wall eccentricity.

Manufacturers use a pipe thickness tester  to:

• Validate minimum wall thickness.
• Recognize portions of varying wall thickness.
• Calculate the eccentricity of the wall surrounding the perimeter of the pipe.
• Maintain quality control in production.
• Prevent issues linked to material.
• Validate dimensional requirements
• Consistency in manufacturing must be improved..

In the case of pressurized pipes, it is particularly significant to detect a thin area.

How does the pipe wall thickness tester determine variations?

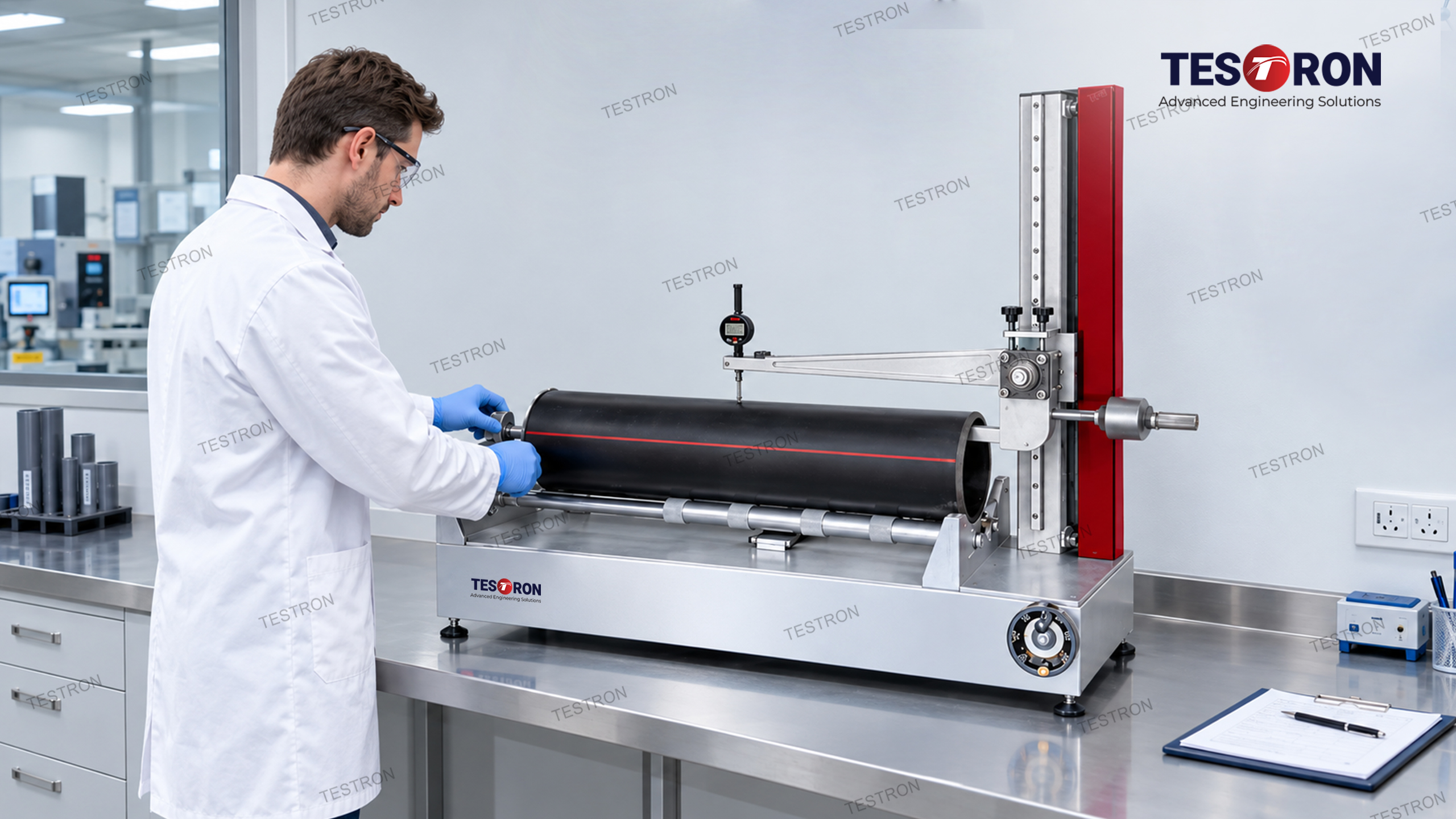

The procedure involved with a pipe wall thickness tester machine is simple and highly repeatable. First, the pipe specimen is placed in the holder. Then, the highly accurate mechanical measuring gauge—acting as a robust pipe wall thickness gauge—is pressed against the pipe wall while an adjustable counterweight presses on the opposite end.

The user can rotate the pipe to obtain measurements at various points around the circumference of the pipe. This will show whether the thickness of the pipe wall is uniform or if some sections are thicker or thinner than others.

This makes the instrument handy in the determination of pipe wall thickness measuring instruments both in laboratory and factory floor tests.

Key Specifications of Testron’s Pipe Wall Thickness Tester in the USA

Looking for quality pipe testing equipment for your laboratory in the USA?

Please contact us at Testron Group for information on applications, specifications, and pricing.

Pipe Thickness Tester vs. Pipe Wall Thickness Gauge

While a pipe wall thickness gauge is used for getting the thickness reading from a particular spot, there is an additional specialised pipe thickness tester that allows more accurate measurement and detection of variations within the pipe segments.

The choice of tool by pipe manufacturers is determined by the pipe size, wall thickness, material, resolution needed, the frequency of testing and the quality standards applied.

The Testron Group mechanical solution enables direct dimension measurement without any need for power supply, coupling gel or special ultrasonic calibration of the material.

Key Advantages of a Dedicated Pipe Wall Thickness Tester in the USA

1. Consistent measurements

Measurement repeatability can be ensured by means of control retainers.

2. Identifies circumference variations

By rotating the pipe, one can do measurements in different places to identify possible eccentricity.

3. Can be used for plastic pipes

The measuring instrument works with materials such as HDPE, LDPE, and PVC.

4. No power needed

Due to the mechanical touch system, there is no need for batteries or other sources of power.

5. Adjustable pressure

Due to the possibility of setting the weight of the counterweight, one can avoid overpressing soft plastic material.

6. For manufacturers’ needs

The measuring instrument can be employed in manufacturing operations, laboratory work, quality control, and research.

Applications of a Pipe Wall Thickness Tester in the USA

A pipe wall thickness tester in the USA can assist in maintaining quality control of plastic pipes during their production process.

Its common uses are as follows:

• HDPE pipe production
• LDPE pipe quality control
• PVC pipe inspection
• Water distribution pipes
• Drainage pipes
• Gas distribution pipes
• Industrial plastic pipes
• R&D laboratories
• Testing laboratories

The pipe wall thickness tester in the USA, for example, is used to perform tests along with other pipe testing equipment when developing a fully equipped laboratory. These include hydrostatic pressure testers, ring stiffness testers, flattening testers, rapid crack propagation testers, and melt flow indexers.

Seeking a total pipe test machine configuration?

Talk to Testron Group about your pipe sizes, material type, testing needs, and laboratory usage.

Things to Take into Account Before Purchasing a Pipe Wall Thickness Tester?

Before choosing a pipe wall thickness tester manufacturer or evaluating a pipe wall thickness tester cost, consider the following parameters:

Required wall thickness measurement range

• Range of pipe diameters
• Resolution
• Maximum wall thickness tester depth
• Material of pipes
• Frequency of measurements
• Use in laboratory/production environments.
• Testing standards applicable
• Necessity of calibration
• Technical after-sales support
• Necessity of customization
• Total cost of the pipe wall thickness tester, its price

Example: Testron’s basic model measures pipe wall thickness of 0 to 35 mm, with pipe diameters ranging from Ø110 to Ø630 mm. Other configurations can be discussed.

Reasons to Select Testron for Your Pipe Wall Thickness Testing Supplies

Testron Group is a premier pipe wall thickness tester supplier and manufacturer providing materials testing equipment to manufacturers, laboratories, universities, and quality control departments. Their pipe wall thickness tester in the USA is engineered to deliver precise dimensional measurements while maintaining a simple, user-friendly interface.

This pipe wall thickness tester in the USA is included in their wide range of materials testing machines and pipe testing machines, enabling you to purchase various types of testing machines from one supplier.

USA customers can also consult the supplier for the right configuration, measurement ranges, and additional requirements for the pipe testing machine.

Get a quote for the pipe wall thickness tester price from Testron Group and discuss your application in the USA with the technical team.

Conclusion: Optimize Pipe Quality by Measuring Pipe Wall Thickness Precisely

Pipe wall thickness tester in the USA consistency plays an important role in manufacturing reliable plastic pipes. There is an instrument designed to help manufacturers determine areas of pipes that have thin walls, thick walls, and uneven pipe wall thickness.

The Testron pipe wall thickness testing device offers a high resolution of 0.01 mm, thickness measurement from 0 to 35 mm, pipe diameter from Ø110 to Ø630 mm, and mechanical contact measurement.

Pipe wall thickness test equipment is a must-have for manufacturers and testing laboratories working in the USA.

If you are interested in pipe wall thickness tester manufacturer or pipe wall thickness tester supplier, please contact Testron Group.
