Summary

If your facility tests structural steel, polymers, pipelines, or aerospace alloys, the charpy impact testing machine in the USA is one of the most critical instruments in your quality control lab. This guide breaks down everything you need to know: from mandatory ASTM E23 and ISO 148-1 compliance to charpy impact testing machine specifications, pricing considerations, and how to choose the right charpy impact testing machine manufacturer or charpy impact testing machine supplier for your application. Whether you are operating a materials lab in Houston, a pipe testing facility in Chicago, or a QC center in Los Angeles, this guide will help you make a well-informed procurement decision that drives accuracy, compliance, and ROI.

Selection of a Charpy impact testing machine in the USA cannot be limited to a mere comparison of machine capabilities and price. Labs testing steel, metals, and other engineering materials have to take into account requirements of ASTM E23 and ISO 148, impact energy, shape of the striker, calibration and temperature conditioning.

This guide is going to help you in understanding the essential criteria of the Charpy impact testing: standards, machine capabilities, test procedure, calibration needs and price aspects.

Introduction: One Small Notch. One Big Consequence.

Today, the charpy impact testing machine in the USA sits at the front line of material safety. It is the equipment that answers one non-negotiable question: Will this material hold under sudden, real-world impact?

Yet despite its critical role, many procurement teams and lab managers in the USA still struggle with choosing the right charpy impact test apparatus, understanding applicable standards, and justifying charpy impact testing machines in the USA price investments to management.

That’s exactly what this guide solves.

Introduction: The Importance of Charpy Impact Testing

A material may have good performance under regular loading conditions but behave quite differently under impact loading conditions. Charpy impact testing assists laboratories in determining the energy absorbed by a notched specimen under impact loading conditions.

Charpy impact testing is conducted on the charpy impact testing machine in the USA, which subjects the prepared specimen to the impact from the pendulum striker. Energy of impact is determined and reported in accordance with the applicable test method using charpy test equipment.

The ASTM E23 standard is a widely recognized standard for conducting notched bar impact testing of metallic materials by laboratories in the USA. The ISO 148-1 standard contains the requirements for conducting Charpy pendulum impact tests of metallic materials for laboratories conducting tests under international specifications.

Thus, purchasing the appropriate equipment implies much more than selecting a machine itself.

Charpy Impact Testing Machine Defined

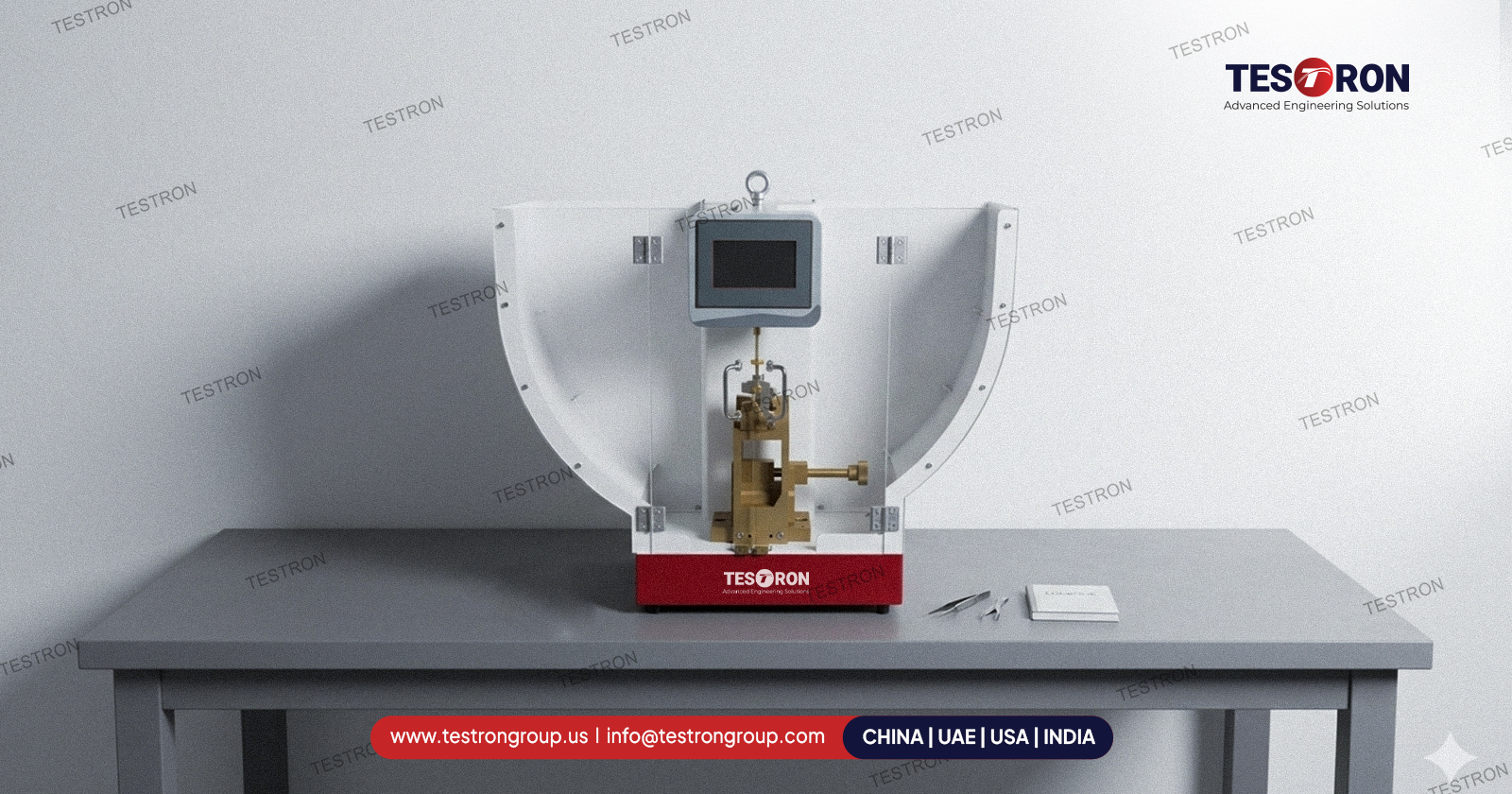

A Charpy impact test machine is an impact testing apparatus of the pendulum type that measures the energy absorbed in fracturing a notched specimen by means of a pendulum striker.

Steps in the Charpy Testing Procedure Include:

1. Positioning of the specimen in the machine supports
2. Raising of the pendulum to the required start position
3. Release of the pendulum
4. Striker impact on the specimen
5. Fracture/deformation of the specimen by impact
6. Calculation of energy of the test by the machine
7. Recording of test result

Charpy testing is frequently used for metallic materials and can be employed for material development, quality control, research, production testing, and product qualification.

Importance of Charpy Impact Testing Machine in the USA

Charpy testing allows laboratories to investigate material behavior under sudden load and detect the difference in impact characteristics between materials or material conditions.

The following applications can include Charpy testing:

• Structural steel
• Metal/Alloy testing
• Pipeline materials
• Pressure vessel materials
• Automotive materials
• Aerospace materials
• Education (university/laboratory)
• Quality Control Testing

The exact testing requirement depends on the material specification and standard.

ASTM E23 and ISO 148 Standards for the Charpy Impact Testing Machine in the USA

The key thing to take into account before buying a Charpy impact testing machine in the USA is the choice of standard that is relevant for your testing program.

ASTM E23: Notched-Bar Impact Testing

ASTM E23: Standard Test Methods for Notched Bar Impact Testing of Metallic Materials is a standard on Charpy and Izod impact testing of metallic materials.

It includes aspects such as

• Specimen requirements
• Test methods
• Machine requirements
• Impact testing procedure
• Reporting
• Machine verification

ASTM E23 should be taken into consideration in conjunction with the relevant material or product specification, as the required test conditions may vary depending on the application.

ISO 148-1: Charpy Pendulum Impact Test

ISO 148-1: The Charpy pendulum impact test describes the Charpy pendulum impact test method for metallic materials. It provides the requirements for the determination of absorbed energy with Charpy specimens, including V-notch and U-notch test requirements.

If your laboratory serves both American and foreign clients, it may be a good idea to buy equipment that allows configuring it for the relevant ASTM and ISO standards.

ASTM E23 compared with ISO 148

Note: The relevant standard must always be verified from material specifications, product standards, customer specifications, or laboratory test procedures.

Other Standards for Charpy Impact Testing Equipment

Depending on the type of material and its use, other standards might apply to laboratories as well.

These include:

The appropriate standard should be chosen in consideration of the actual material, product, and test requirement.

Interested in finding out the appropriate Charpy impact tester for you? Contact us at Testron Group!

Considerations for Choosing Charpy Impact Testing Machines Specifications

When choosing a Charpy impact tester, you should not just consider the cost factor. You must choose a machine that is suited for the desired test method/materials.

1. Pendulum Energy Rating

The required impact energy will depend on the material, specimen, and test.

Before choosing a machine, you need to determine:

• The required energy rating
• Material
• Specimen size
• Desired testing standards
• Testing range expected
• Future testing requirements

It would be best if you chose a capacity that fits your testing needs and not one that only has a high rating but is beyond what you require.

2. Striker and Anvil Setup

The setup of the striker and anvil is an important aspect of Charpy testing. Before buying a machine, make sure that you have verified:

• Striker setup
• Anvil setup
• Specimen holding setup
• Notch setup
• Dimensional requirements
• Verification requirements

You should ensure that the geometry is according to the edition of the relevant testing standards.

3. Dimensions of the Specimen and Notch

The specimen should be prepared as per the relevant test method.

Critical considerations include:

• Dimensions of the specimen
• Type of notch
• Dimensions of the notch
• Positioning of the notch
• Thickness of the material
• Process of preparing the specimen

Equipment for specimen preparation may also be considered a critical component in impact testing by laboratories conducting the tests on a routine basis.

4. Temperature Conditioning

In certain Charpy impact tests, it is necessary that the specimens undergo tests at controlled temperatures.

Depending on the specific application, the laboratory might require:

• Low-temperature conditioning
• Temperature-controlled baths
• Temperature heating and/or cooling systems
• Temperature monitoring
• Specimen transfer methods

It is essential that the test temperature and temperature conditioning process be decided based on the relevant standards and specifications.

5. Digital Measurement and Data Acquisition

The modern Charpy impact testing machines are equipped with digital systems to facilitate measurement and data recording.

Depending on the machine configuration, the system might comprise of:

• Energy metering display
• Automatic calculation
• Storage of test results
• Data exportation
• Computer connectivity
• Generation of test reports
• Specimen identification

Kinds of Charpy Impact Testing Machine in the USA

Not all labs have the same volume of tests to run and the level of automation required when choosing a charpy impact testing machine in the USA.

Manual Charpy Impact Testing Machine

For labs that carry out fewer tests, it could be ideal to get a manual machine.

Some of the characteristics could include:

• Manual swinging of the pendulum
• Manual loading of the specimen
• Either mechanical or digital results reading
• Easy to use

Semi-Automatic Charpy Impact Tester

For a lab that needs more convenience in doing tests, a semi-automatic charpy impact tester will work great.

Some of the features of a semi-automatic machine could include:

• Motorized lifting of the pendulum
• Digital energy calculation
• Electronic result reading
• Manual loading of specimen
• Data recording

Automatic Charpy Impact Testing Equipment

The automatic charpy impact testing equipment is designed for labs with high-level automation and efficiency.

Features could include:

• Automated operation of the pendulum
• Automated data collection
• Digital reporting
• Automated calculations
• Temperature conditioning
• Automated specimen loading

Instrumented Charpy Impact Testing Machine

Instrumented charpy impact test equipment is used to give more information about the impact test apart from just absorbed energy.

Instrumented impact tests are specified in the ISO 14556 standard.

Factors Influencing Charpy Impact Testing Machine Price in the USA

One of the most frequent inquiries made by laboratories is regarding the charpy impact testing machine price and overall investment cost for a charpy impact testing machine in the USA.

It is impossible to quote a general price since the price of the machine will vary based on the necessary configuration, which will be determined by the needs of the laboratory.

Some of the factors that might influence the Charpy impact testing machine cost are:

• Capacity of impact energy
• Manual or automated operation
• Digital measurement system
• Data acquisition
• Temperature conditioning
• Accessories for specimen preparation
• Software
• Verification/calibration
• Installation
• Technical support
• Spare parts

Thus, it is recommended to compare the machines based on testing needs rather than solely on their price.

Looking for a Charpy Impact Testing Machine Quotation?

Provide information regarding:

1. Material type
2. Testing standard
3. Capacity of impact energy
4. Specimen size
5. Test temperature
6. Necessary level of automation

Connect Testron Group for the discussion of the most suitable configuration and quotation.

Applications/Industries Where Charpy Impact Tests Are Performed

Oil & Gas and Pipeline Testing

In some cases, the Charpy impact test may be used as a primary method in material evaluation and qualification programs for some pipe materials as required in the respective product or material specifications, often serving as a dedicated pipe testing machine to evaluate structural integrity under stress.

Some of the tests include

• Base metal
• Welded metal
• Heat-affected zone
• Low-temperature impact test
• Material qualification

The actual requirements will depend on the specific pipe specification and material grade.

Structural Steel and Construction

The Charpy test is performed in applications where the impact toughness of structural metal is needed.

These include:

• Evaluation of structural steel
• Control of material quality
• Testing of incoming material
• Research & Development activities
• Product qualification

Automotive and Transportation

In automotive and transportation laboratories, impact testing is used in the context of material development and quality control.

Tests may cover:

• High-strength steels
• Metallic alloys
• Components
• Conditions of materials
• Research samples

Aerospace and Advanced Materials

For aerospace and advanced materials laboratories, impact testing may be used in research and material characterization as defined in the pertinent specification.

This may include:

• Specialty alloys
• Metallic components
• Material development
• Research
• Qualification tests

Universities and Research Laboratories

Charpy impact testing machines are also very useful in engineering and materials science laboratories.

Some possible uses in an educational setting could be

• Materials science tests
• Metallurgy teaching
• Fracture tests
• Comparing different materials
• Mechanical tests

The Testron Group also supplies high-quality pipe testing equipment and test equipment for laboratory and education testing applications.

How Does a Charpy Impact Test Work?

There are six basic steps in performing a test on a charpy impact testing machine in the USA.

Step 1: Sample Preparation

The sample is prepared as per the requirements defined in the particular test method.

Step 2: Temperature Conditioning

If temperature conditioning is required in the test, then the specimen is conditioned to the test temperature.

Step 3: Proper Sample Placement

Proper placement of the specimen on the supports of the instrument.

Step 4: Impact of Specimen by the Pendulum

Release of the pendulum, resulting in the impact of the specimen by the striker at the designated position.

Step 5: Measurement of Energy

The energy released due to impact is measured.

Step 6: Recording of Results

The lab records all necessary information, which may include:

• Energy absorbed
• Temperature of the test
• Information regarding the specimen and material
• Fracture information

Any other measurement as per the particular test specification

All steps of the test should be done as per the applicable test specification.

Selection Criteria for a Charpy Impact Test Machine

When selecting a Charpy impact testing machine in the United States, keep the following list in mind:

Following this checklist in selecting the equipment can prevent laboratories from acquiring equipment that is not suitable for their testing needs.

Why Opt for Testron Group for Charpy Impact Test Machine?

Testron Group offers testing equipment for materials for the use of quality control laboratories, manufacturers, research institutes, and educational institutions.

While considering which charpy impact testing machine manufacturer or charpy impact testing machine supplier to choose, laboratories need to think not only about the equipment but also about:

• Usage assistance
• Machine configuration
• Test standards
• Installation
• Training
• Technical assistance
• Spares
• After-sales services

Testron Group is able to assist the customer in evaluating his/her material, test standard, impact energy and laboratory needs when choosing Charpy impact testing machine in the USA & UK.

Depending on whether your need is a simple machine for laboratory education or an advanced one for quality control purposes, the machine must be configured accordingly.

Concluding Words: Selection of Suitable Charpy Impact Testing Machine

The selection of Charpy impact testing machine in the USA is an important aspect of many material testing laboratories. However, it is important to consider more factors beyond the price comparison between machines.

It is important to examine the following aspects before purchase:

• Test standards being used
• Material types
• Specimen geometry
• Impact energy
• Strike and anvil requirements
• Temperature requirement
• Measuring system
• Calibration requirements
• Data recording requirements
• Technical support

Both ASTM E23 and ISO 148 give important guidelines for Charpy impact testing. It is however essential to confirm the actual requirements based on material or product specifications.

Looking for Charpy Impact Testing Machine in the USA?

Contact us at Testron Group with your material, test standard and machine requirements. We will assist you in finding the suitable Charpy impact testing equipment for your laboratory.

Contact us at Testron Group for Charpy impact testing equipment and material specific solutions.
