What Is a Falling Weight Impact Tester — And Why Does It Matter?
A falling weight impact tester, also known as a drop weight impact testing machine or drop weight test machine, is a laboratory instrument used to determine the impact resistance of materials by releasing a weighted striker from a measured height onto a test specimen.
For rigid PVC conduit manufacturers and importers supplying to the US market, compliance with UL651 and ASTM D 2444 is non-negotiable. These standards require that seven out of ten specimens show no crack or tear shorter than 1/32″ when subjected to a controlled blow from a falling striker of specified mass and shape.
Failure to meet these thresholds can result in product recalls, liability exposure, and loss of certification. The TT-UL6 falling weight impact testing machine removes that risk by giving quality control teams a reliable, automated, and highly accurate testing environment.
This is not just any drop weight impact tester — it is a fully engineered falling weight impact testing apparatus designed for industrial laboratories and production-floor quality control departments.

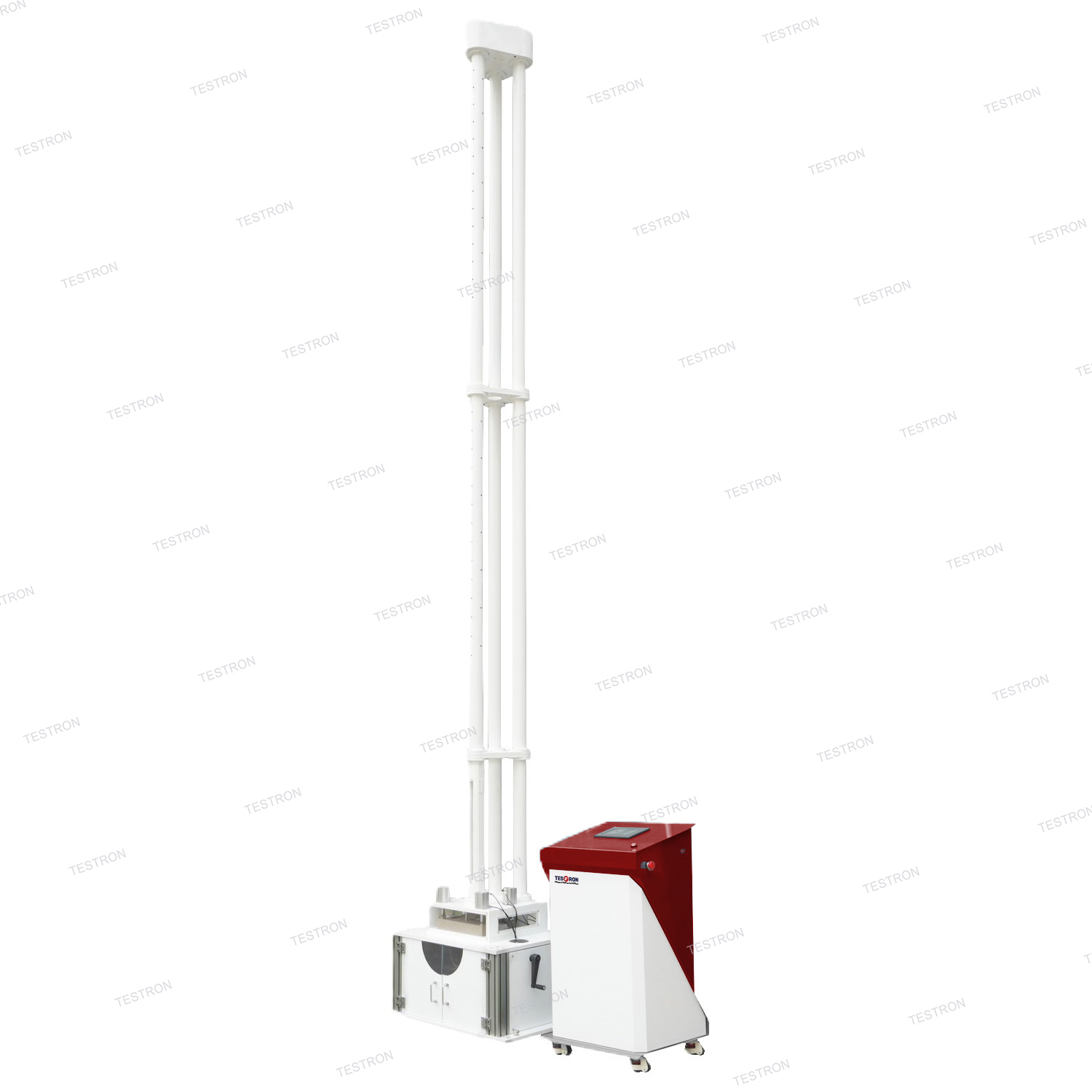

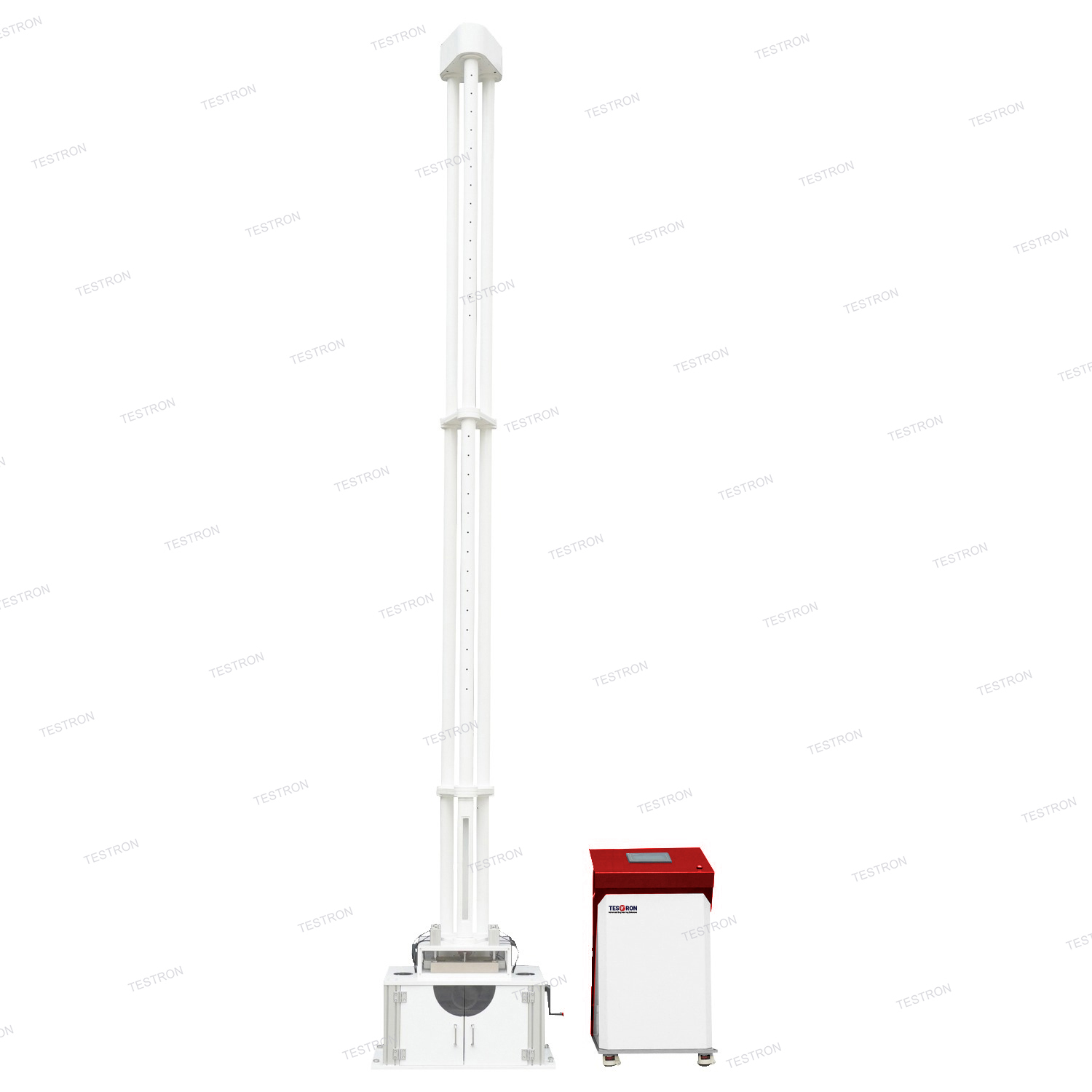

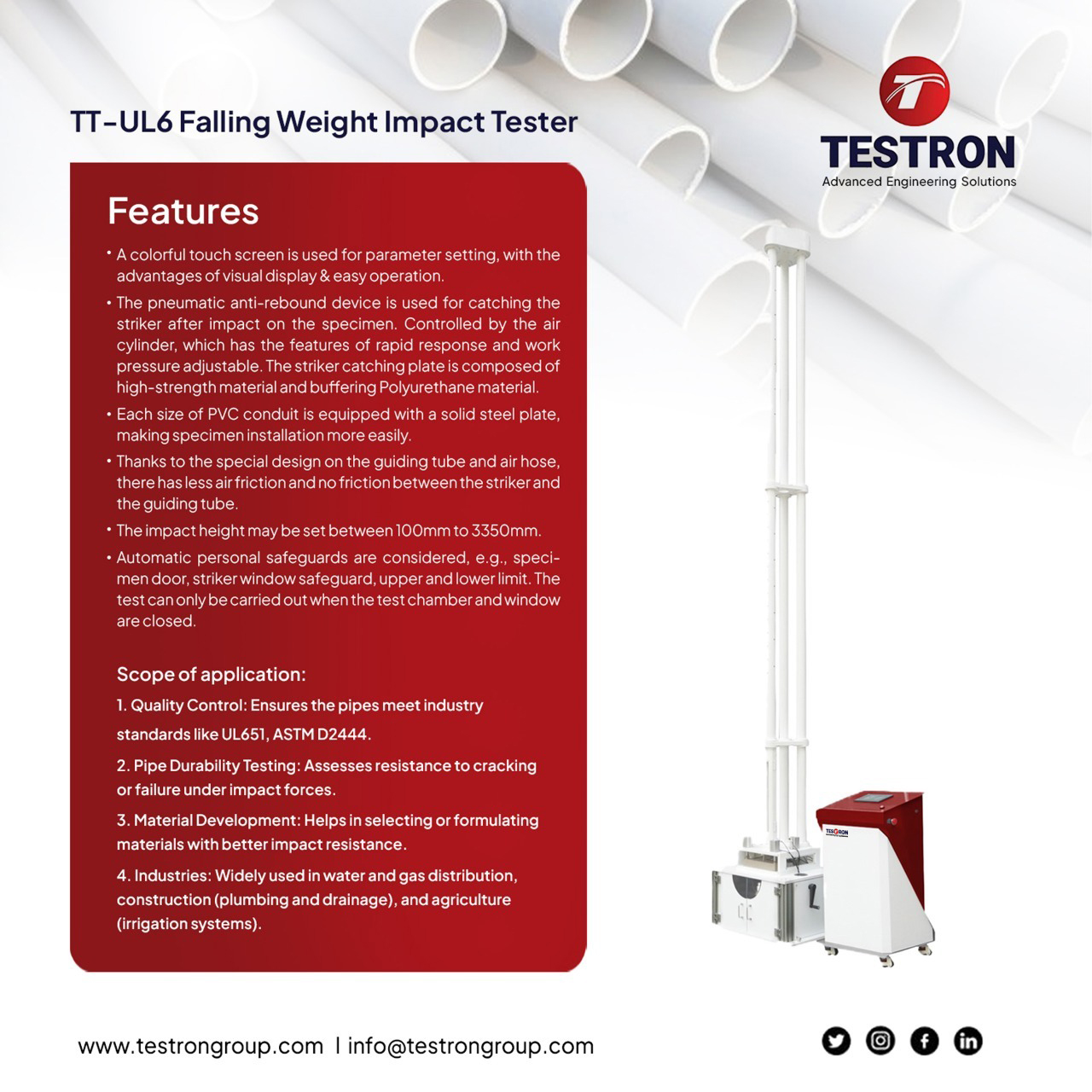

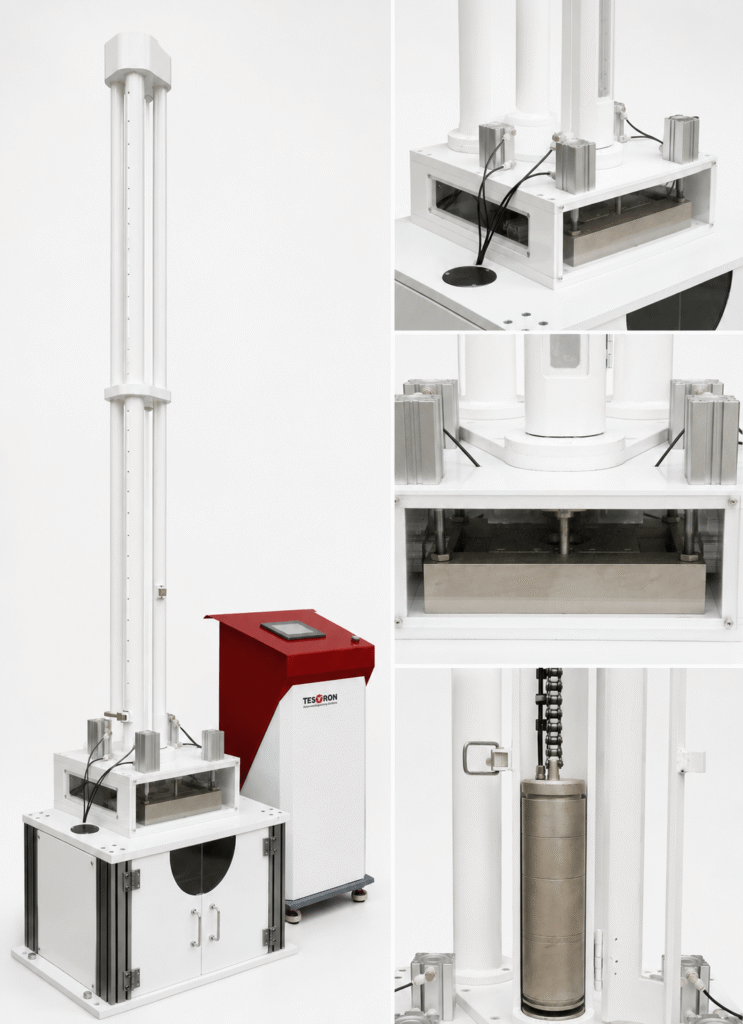

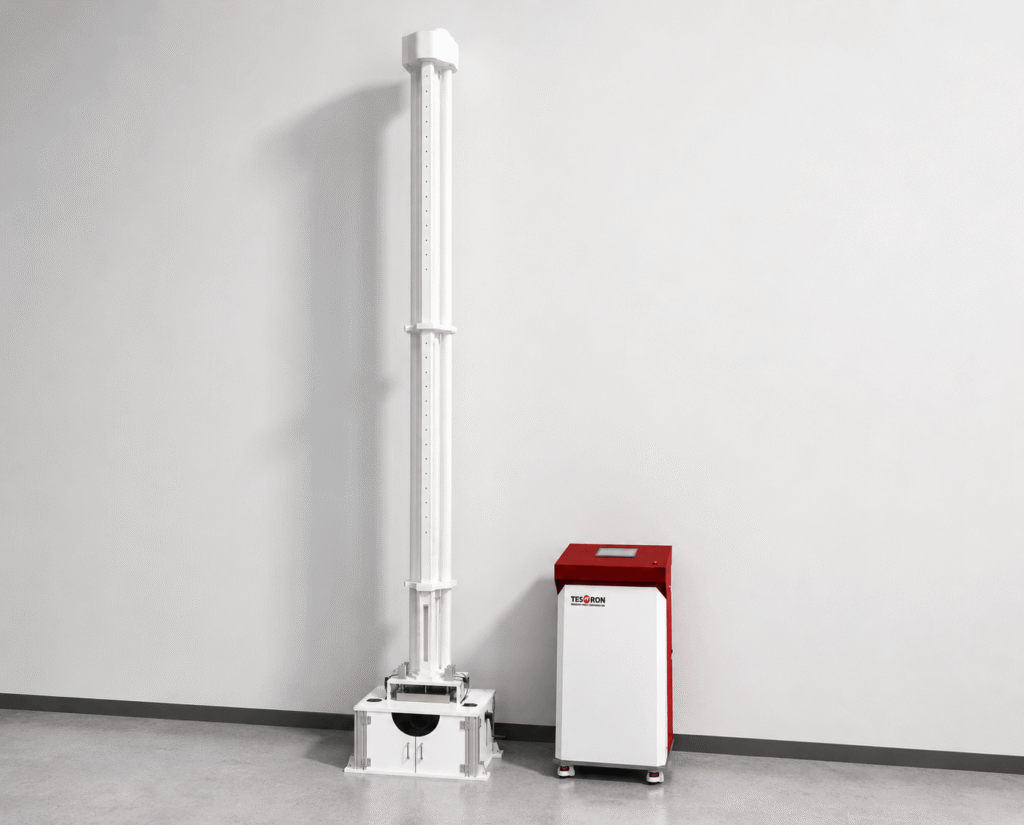

TT-UL6 Falling Weight Impact Tester in the USA: Key Features That Set It Apart
Intuitive Touchscreen Interface:
The TT-UL6 falling weight impact testing equipment uses a colorful touchscreen for all parameter configuration. Visual display makes it straightforward for technicians to set impact height, review test sequences, and log results — no extensive training required.
Pneumatic Anti-Rebound System:
One of the most critical design elements in any falling weight impact testing instrument is what happens after impact. The TT-UL6 incorporates advanced pipe testing equipment technology, using a pneumatic anti-rebound device to catch the striker immediately after contact with the specimen. Controlled by an air cylinder with adjustable work pressure, this system responds rapidly and consistently, preventing secondary impact events that could invalidate your test data.

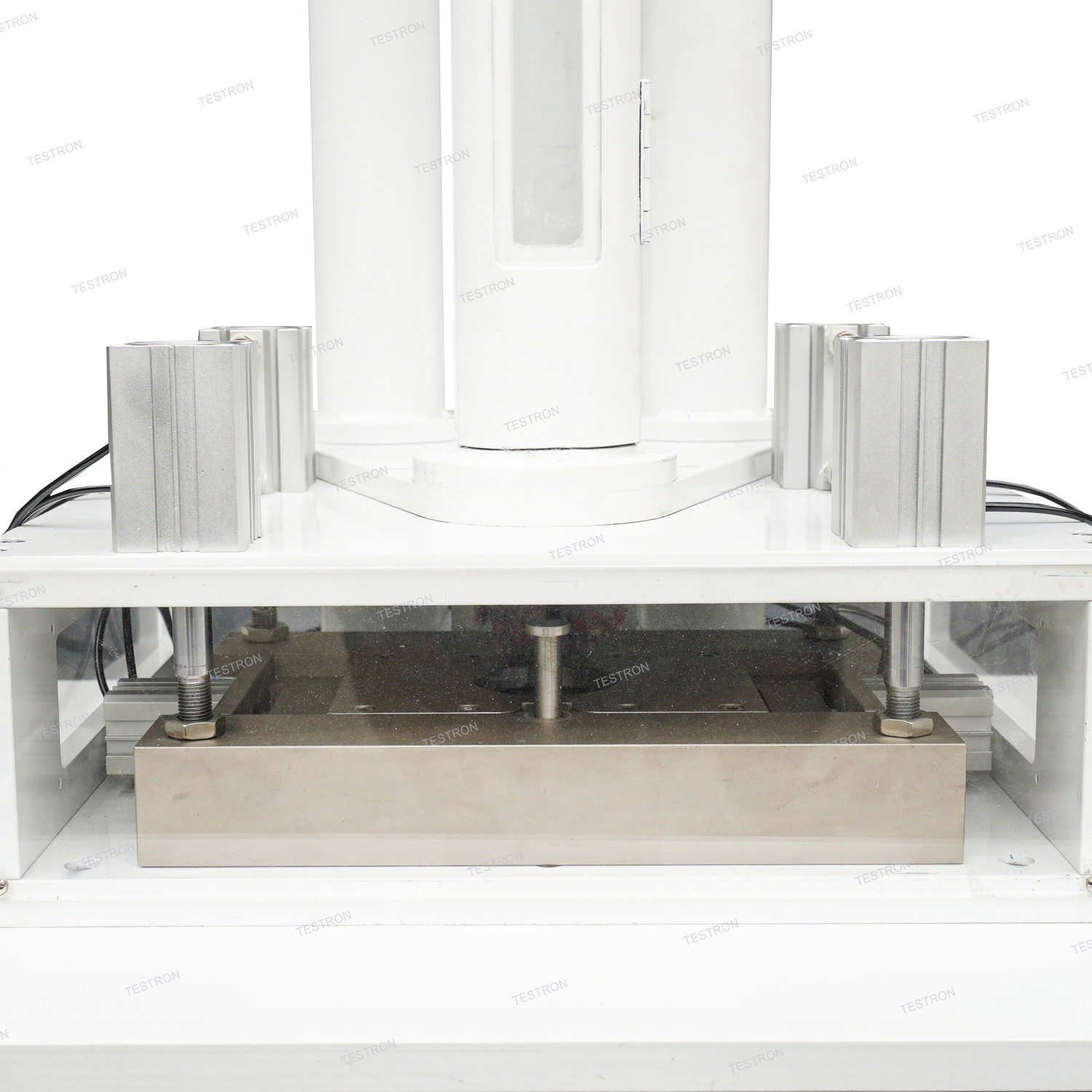

High-Strength Striker Catching Plate:
The catching mechanism is built from high-strength structural material combined with buffering polyurethane, giving it the durability to handle tens of thousands of test cycles while maintaining precision performance.
High-Strength Striker Catching Plate:
The catching mechanism is built from high-strength structural material combined with buffering polyurethane, giving it the durability to handle tens of thousands of test cycles while maintaining precision performance.
Specimen-Specific Steel Support Plates:
Each pipe diameter size comes with a dedicated solid steel support plate, ensuring the specimen sits firmly and uniformly during every drop weight impact test. This eliminates variability caused by specimen movement or misalignment.
Optimized Guide Tube Design:
Testron's engineers have developed a special guide tube and air hose design that minimizes air friction during the striker's fall. There is zero friction between the striker and the guide tube wall, which means the striker reaches the specimen at exactly the calculated velocity — every time.
Wide Impact Height Range:
The TT-UL6 falling weight impact testing machine supports impact heights from 100mm to 3,350mm, covering a broad range of test conditions across different PVC conduit grades and standards. Height error is held to ±3mm for exceptional repeatability.

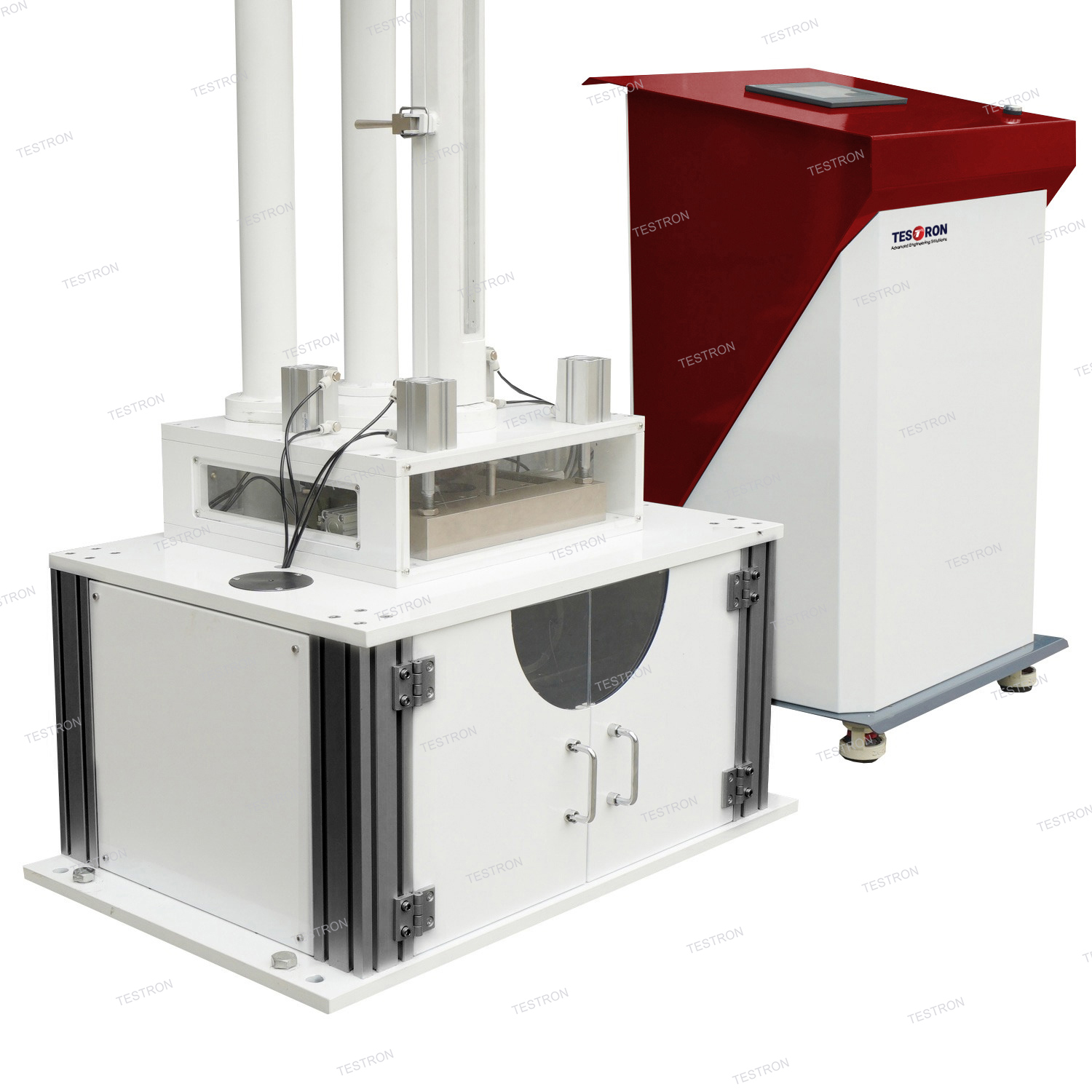

Comprehensive Safety Systems:
Operator safety is built into the design at every level. The machine includes a specimen door, a striker window safeguard, and upper and lower limit switches. The drop weight impact tester will only execute a test cycle when both the test chamber door and the striker window are fully closed — protecting operators from accidental exposure to the striker path.
Technical Specifications of TT-UL6 Falling Weight Impact Tester in the USA
| Parameter | Specification |
| Impact Height Range | 100mm – 3,350mm |
| Height Error | ±3mm |
| Striker Rising Speed | 12m/min |
| Striker Weight | 9.1kg (φ51) / 34kg (φ150) |
| Specimen OD Range | 1/2″ – 6″ |
| Specimen Length | 150mm |
| Control Unit Dimensions | 550mm(L) × 650mm(W) × 1100mm(H) |
| Main Frame Dimensions | 800mm(L) × 650mm(W) × 4350mm(H) |
| Applicable Standards | ASTM D 2444, UL651 Schedule 40/80 |

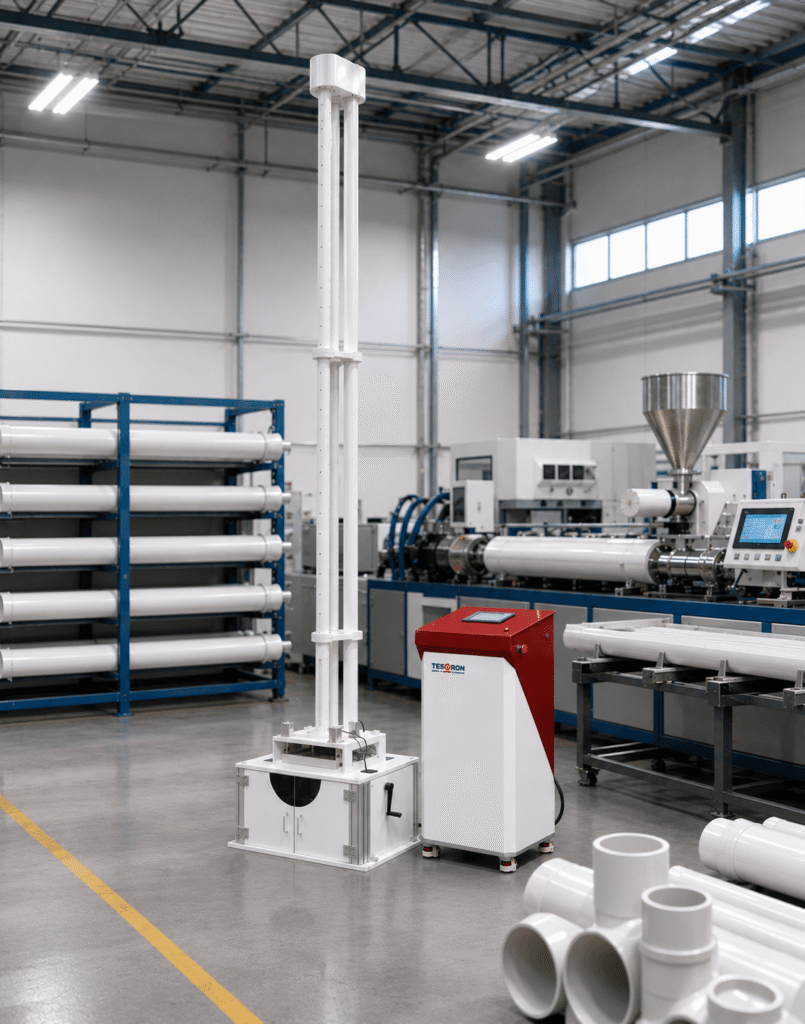

Who Needs a Falling Weight Impact Tester?
The TT-UL6 falling weight impact tester in the USA is designed for a wide range of professionals working in industrial manufacturing, quality control, and laboratory testing environments. If you are in any of the following roles or industries, this instrument belongs in your workflow:
- PVC Conduit Manufacturers: Whether you are producing Schedule 40 or Schedule 80 rigid PVC conduit for the electrical, construction, or telecom sectors, UL651 compliance requires routine drop weight impact testing. The TT-UL6 gives your QC team the tool it needs to run fast, accurate, and fully documented tests.
- Electrical Product Manufacturers: Companies producing electrical raceways, wiring systems, and cable protection products often test to ASTM D 2444 as part of their product development and ongoing quality assurance routines.
- Third-Party Testing Laboratories: Independent labs servicing the construction, utilities, and materials sectors need a falling weight impact tester that meets published standards, delivers reliable data, and can handle high testing volumes with minimal downtime.
- Procurement and Compliance Teams: Engineers and procurement managers sourcing PVC conduit for large-scale construction, infrastructure, or industrial projects frequently require third-party test certification. Having an in-house falling weight impact testing apparatus reduces reliance on external labs and speeds up compliance verification.
- Research and Development Teams: Material scientists and R&D engineers developing next-generation pipe formulations, blends, or co-extrusions rely on drop weight test machines to understand how changes in compound formulation affect impact resistance.
Compliance Standards Supported by the TT-UL6 Falling Weight Impact Tester in the USA
The TT-UL6 falling weight impact tester is fully compliant with the following testing standards:
- ASTM D 2444 – Standard Test Method for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)
- UL 651 – Standard for Schedule 40, 80, Type EB and A Rigid PVC Conduit and Fittings
These standards govern how specimens are prepared, what striker mass and geometry must be used, from what height the striker must be released, and what the acceptance criteria are. The TT-UL6 falling weight impact testing equipment is specifically designed around these requirements, ensuring that every test you run is audit-ready and fully defensible.
Why Choose Testron Group as Your Falling Weight Impact Tester Supplier?
There is no shortage of material testing equipment suppliers in the global market. But Testron Group has built a reputation that goes beyond catalog listings and competitive pricing. Here is what makes us a trusted partner for quality control labs and engineering teams worldwide:
- Proven Manufacturer Experience: Testron Group has been engineering laboratory testing equipment and quality control solutions since 2015. Our product range spans material testing, environmental simulation, metal testing, packaging testing, and more. The TT-UL6 is one piece of a comprehensive ecosystem of testing instruments — all developed by the same engineering teams to the same quality standards.
- Global Support, USA Market Focus: Our USA operations mean you get local support, fast communication, and responsive after-sales service — without the delays and logistics challenges that often come with international suppliers. Whether you need a falling weight impact tester price quotation, technical documentation, or post-installation support, Testron’s USA team is there.
- ISO-Certified Quality: Testron Group is ISO certified, meaning every instrument — including the TT-UL6 drop weight impact testing machine — is manufactured under rigorous quality management processes. You get consistency you can count on, batch after batch, year after year.
- Customization Available: Standard configurations do not always match every lab’s needs. Testron Group offers customization options to tailor the falling weight impact tester machine to your specific test protocols, space constraints, or data output requirements. Talk to our engineering team and we will design a solution that fits.
- Transparent Falling Weight Impact Tester Cost: We believe buyers deserve clear, competitive pricing without hidden charges. Contact our team for a detailed falling weight impact tester cost breakdown based on your specific model selection and configuration requirements.

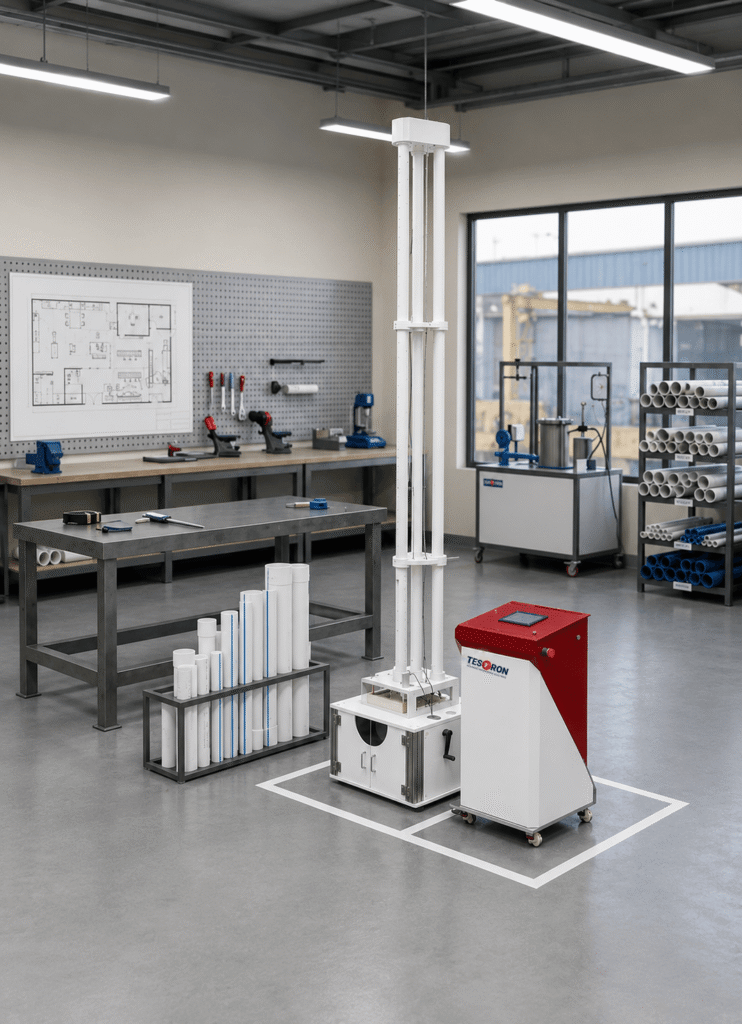

Falling Weight Impact Tester vs. Generic Drop Weight Test Machines: What Buyers Should Know
Not every machine called a “drop weight impact tester” is built to the same standard. Here is what to look for when evaluating suppliers:
Standard-Specific Design: Generic machines may not be calibrated for ASTM D 2444 or UL651. The TT-UL6 is purpose-built around these standards.
Anti-Rebound Technology: Without a pneumatic anti-rebound system, secondary impacts can corrupt test data. The TT-UL6 uses air cylinder control to eliminate this problem.
Accurate Height Control: A ±3mm height error specification is critical. Many budget instruments cannot hold this tolerance across the full 3,350mm range.
Safety Compliance: Industrial laboratory equipment must protect operators. The TT-UL6’s multi-layer safety interlock system is designed to US industrial equipment safety expectations.
After-Sales Support: A falling weight impact testing apparatus is a long-term capital investment. Choose a falling weight impact tester manufacturer that offers installation support, calibration services, and a clear warranty policy.
Testron Group checks all of these boxes — and our 2-year warranty backs it up.
Frequently Asked Questions
What is a TT-UL6 falling weight impact tester in the USA used for?
A falling weight impact tester measures how well a material — typically rigid PVC conduit — resists cracking or tearing when struck by a calibrated weight dropped from a controlled height. It is used in manufacturing quality control, third-party testing, and R&D to verify compliance with ASTM D 2444 and UL651.
What standards does the TT-UL6 falling weight impact testing machine comply with?
The TT-UL6 is designed to comply with ASTM D 2444 and UL651, covering Schedule 40 and 80 rigid PVC conduit. These are the primary standards governing impact resistance testing for thermoplastic pipe products in the USA.
What is the falling weight impact tester price range for the TT-UL6?
Falling weight impact tester cost varies based on configuration, striker weights, and any customization. Contact Testron Group directly to receive an accurate, itemized quote based on your specific requirements. We offer competitive pricing with transparent terms.
How does the anti-rebound system work in this drop weight impact testing machine?
The TT-UL6 uses a pneumatic air cylinder-controlled catching plate that grabs the striker immediately after it contacts the specimen. This prevents the striker from bouncing back and striking the specimen a second time, which would invalidate the test result.
Can the TT-UL6 drop weight impact tester be customized for different pipe sizes?
Yes. The machine accommodates specimen outside diameters from 1/2" to 6". Each pipe size has a dedicated solid steel support plate for proper specimen positioning. Testron Group also offers configuration customization — contact our team for details.
What after-sales support does Testron Group offer for its falling weight impact testing equipment?
Testron Group provides a 2-year warranty, installation support, calibration guidance, and ongoing technical assistance through our Service Request portal. Our USA-based team is available to support your lab's ongoing operational needs.
Have more questions? Request a Quote or speak with one of our material testing specialists today.
Get the TT-UL6 Falling Weight Impact Tester in the USA for Your Lab
The TT-UL6 falling weight impact tester in the USA is one of the most complete, compliance-ready drop weight impact testing machines available to US buyers. From its pneumatic anti-rebound system to its wide height range and full UL651/ASTM D 2444 compliance, every design decision reflects Testron Group’s commitment to accuracy, operator safety, and long-term reliability.
Whether you are a PVC conduit manufacturer running daily production QC, an independent lab serving industrial clients, or a procurement team building supplier qualification processes — the TT-UL6 falling weight impact testing instrument delivers the data you need, the safety your team deserves, and the compliance documentation your customers require.
Testron Group is more than a falling weight impact tester supplier. We are a long-term quality control partner, supporting your operations with a global network, ISO-certified manufacturing, and a product portfolio that covers the full spectrum of material testing, laboratory testing, and quality control equipment needs.
