Why Precision Milling Matters in Material Testing
Specimen geometry plays a decisive role in tensile strength, elongation, and fracture behavior testing. Even slight variations in width, thickness, or surface finish can lead to deviations in test results, compromising product validation and certification.
A dedicated specimen milling device ensures that each test bar conforms to strict dimensional tolerances. Unlike manual cutting tools or basic machining methods, a CNC-based specimen milling instrument eliminates operator variability, enabling laboratories to achieve consistent results across repeated test cycles. This level of precision is essential for U.S. industries operating under ISO, ASTM, and other regulatory frameworks.

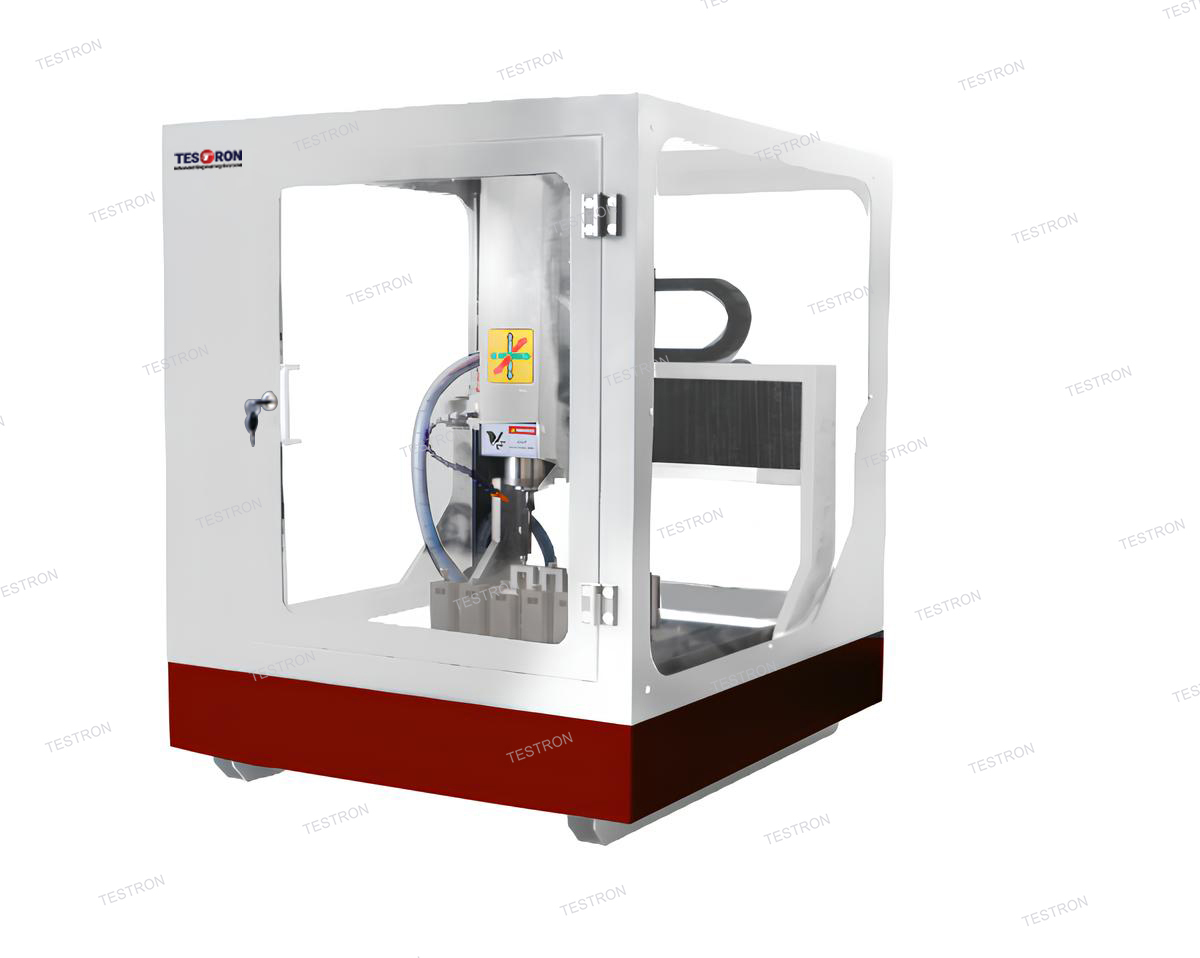

TT-70CNC Specimen Milling Machine Designed for U.S. Laboratories
The TT-70CNC has been developed specifically to meet the demanding needs of specimen preparation in the pipe testing and polymer testing industries. As a fully automated specimen milling tool, it simplifies the production of standardized test bars while maintaining exceptional machining accuracy.
TESTRON equips the TT-70CNC with pipe sample templates in accordance with ISO 6259 Types 1, 2, and 3, ensuring immediate compatibility with common tensile testing requirements. The machine’s inbuilt machining programs and dedicated clamping system further enhance efficiency, allowing users to prepare multiple sample geometries without complex setup procedures.
Applications of the TT-70CNC Specimen Milling Machine
This advanced specimen milling equipment is widely used for preparing plastic pipe samples, dumbbell specimens, and dog-bone test bars for tensile and elongation testing. It supports laboratories engaged in quality control, certification testing, and product development across multiple sectors, including infrastructure, water management, industrial piping, and polymer manufacturing.
By integrating the TT-70CNC into daily workflows, laboratories can transform specimen preparation from a time-consuming manual process into a streamlined, automated operation. This not only improves productivity but also ensures that every test sample meets precise dimensional requirements.
Compliance with Global and U.S. Testing Standards
The TT-70CNC specimen milling machine is designed to support specimen preparation in line with key international standards such as ISO 179/180, ISO 527, ISO 6259, ISO 16770, ASTM D638, and ASTM D1822. These standards define strict guidelines for test bar geometry, surface finish, and dimensional tolerance.
For U.S. laboratories operating in regulated industries, compliance with these standards is non-negotiable. A reliable specimen preparation system like the TT-70CNC ensures that specimens are consistently produced to specification, strengthening the credibility of test data and simplifying audit and certification processes.
Advanced CNC Technology for Maximum Accuracy
At the core of the TT-70CNC is a state-of-the-art CNC machining system that delivers superior control over specimen geometry. The machine is a compact tabletop unit controlled by a computer-based interface, allowing precise programming and repeatable operation.
With the ability to produce up to five test bars in a single milling process, this efficient specimen milling machine in the USA significantly reduces preparation time while maintaining consistent quality. The integrated swarf extraction system keeps the workspace clean, ensuring a professional and safe laboratory environment.
Robust Construction for Long-Term Performance
Durability is a critical factor in high-usage laboratory equipment. The TT-70CNC features a rigid aluminum alloy frame with a thickness of 15 mm, providing excellent structural stability even under continuous operation.
This robust design ensures minimal vibration during milling, improving surface finish and dimensional accuracy. For laboratories seeking a dependable specimen milling machine manufacturer, Testron delivers equipment that combines precision engineering with long-term reliability.
Variable Speed Spindle for Versatile Machining
The frequency-adjustable spindle speed, with a maximum of 24,000 r/min, allows the TT-70CNC to adapt to different materials and specimen thicknesses. Whether working with softer polymers or harder composite materials, operators can optimize cutting conditions to achieve clean edges and consistent dimensions.
This flexibility makes the TT-70CNC an ideal specimen milling tool for laboratories handling a wide variety of materials and test requirements.
Intelligent Safety and Operational Control
Safety and ease of use are essential in any modern testing environment. The TT-70CNC includes protective doors with safety locks, preventing accidental access during operation. Axis limits are incorporated to avoid collisions, protecting both the machine and the operator.
A manual hand wheel enables precise knife alignment and micro-adjustment, giving technicians fine control during setup. These features ensure that this advanced specimen milling instrument is not only powerful but also safe and user-friendly.
Controller System That Simplifies Operation
The TT-70CNC uses the NCStudio control system developed under the Windows platform, offering a clean interface and intuitive operation. Pre-configured machining programs for common bar shapes allow users to begin production with minimal training.
For advanced users, programs can be edited using CAD or other design software, enabling customization for specialized specimen geometries. This versatility transforms the TT-70CNC into a flexible specimen preparation system capable of adapting to evolving laboratory needs.
Technical Parameters Supporting Precision and Versatility
The TT-70CNC specimen milling machine supports specimen thickness from 3 mm to 70 mm and accommodates outside pipe diameters ranging from φ50 mm to φ120 mm. With a plate length capacity of up to 150 mm, the system handles a wide variety of specimen formats.
Its X, Y, and Z axial travels of 300 mm, 400 mm, and 100 mm respectively provide ample working range for different machining tasks. A repeatability of 0.05 mm ensures consistent results across multiple production cycles, reinforcing the machine’s reputation as a reliable specimen milling device for U.S. laboratories.
Enhancing Quality Control in Pipe Manufacturing
For U.S. pipe manufacturers, tensile strength and elongation properties are critical indicators of product performance. Accurate specimen preparation is essential for validating these properties and ensuring compliance with regulatory requirements.
By integrating a professional specimen milling machine in the USA into quality control processes, manufacturers can reduce specimen variability, minimize test repeats, and improve overall production efficiency. This leads to faster decision-making and greater confidence in product quality.
Supporting Research and Development Excellence
In R&D environments, precision is everything. Material scientists rely on accurate specimen geometry to compare formulations, evaluate processing methods, and develop new materials.
The TT-70CNC provides researchers with a dependable sample milling machine that ensures test results reflect true material behavior rather than preparation inconsistencies. This capability supports innovation in polymer engineering, infrastructure materials, and advanced composites.

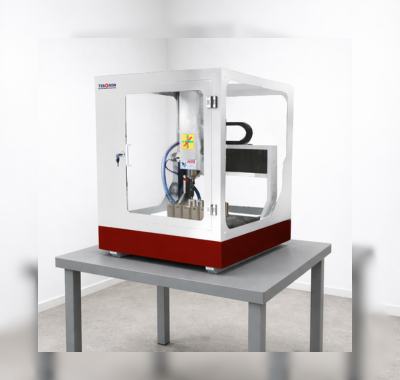

Understanding Specimen Milling Machine Price in the USA
When evaluating specimen milling machine price, U.S. buyers should consider more than just the initial cost. Long-term performance, automation level, maintenance requirements, and technical support all influence the total value of the investment.
Testron offers competitive specimen milling machine cost options that balance advanced CNC functionality with affordability. By reducing labor requirements and minimizing specimen rejection rates, the TT-70CNC delivers excellent return on investment for both small laboratories and large industrial facilities.
Why Testron Is a Trusted Specimen Milling Machine Manufacturer
Testron Group is globally recognized as a reliable specimen milling machine manufacturer, offering precision-engineered solutions for material testing laboratories. With a strong focus on innovation and quality, Testron designs equipment that meets real-world laboratory demands while adhering to international standards.
Every TT-70CNC unit reflects Testron’s commitment to accuracy, durability, and customer satisfaction, making it a preferred choice among U.S. testing professionals.
A Dependable Specimen Milling Machine Supplier in the USA
As a leading specimen milling machine supplier, Testron supports U.S. customers with comprehensive services, including application consultation, installation guidance, and long-term technical support.
This end-to-end approach ensures that laboratories not only receive high-quality specimen milling equipment but also the expertise needed to maximize performance and longevity.

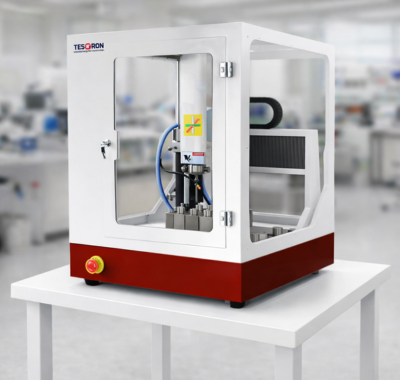

Best Practices for Optimal Specimen Milling
To achieve consistent results, laboratories should follow best practices such as using appropriate cutting speeds for each material, maintaining clean clamping surfaces, and regularly checking tool alignment.
Using a CNC-based specimen milling instrument like the TT-70CNC simplifies these practices by providing controlled, repeatable machining conditions that minimize human error and enhance test reliability.

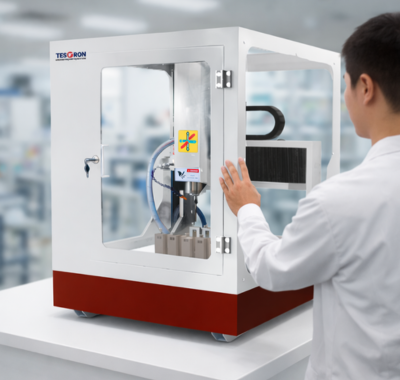

Driving Confidence Through Precision Specimen Preparation
Reliable testing begins with accurate specimens. By investing in a professional specimen preparation system, laboratories can eliminate one of the most common sources of variability in material testing.
The TT-70CNC empowers U.S. laboratories to achieve consistent, standards-compliant specimen preparation, strengthening the credibility of test results and supporting regulatory compliance.
Frequently Asked Questions
What is a specimen milling machine used for ?
A specimen milling machine is used to prepare standardized test samples such as dumbbell and dog-bone specimens for tensile, elongation, and other mechanical tests.
Which standards does the TT-70CNC support ?
The TT-70CNC supports ISO 179/180, ISO 527, ISO 6259, ISO 16770, ASTM D638, and ASTM D1822 standards.
What materials can be processed using this specimen milling device ?
It is primarily used for plastic pipes, polymers, and related composite materials.
How does specimen milling machine price vary in the USA ?
Pricing depends on CNC capability, automation level, durability, and service support. Testron offers competitive pricing with strong long-term value.
Why choose Testron as a specimen milling machine manufacturer ?
Testron is known for precision engineering, reliable performance, and excellent technical support for U.S. laboratories.
Can the TT-70CNC produce multiple samples at once ?
Yes, the TT-70CNC can produce up to five test bars in a single milling process, improving efficiency and throughput.
Call to Action
Upgrade your laboratory’s specimen preparation with a high-performance specimen milling machine in the USA. Contact Testron Group today to request pricing, technical specifications, or expert guidance on the TT-70CNC Specimen Milling Machine and discover how precision CNC milling can transform your material testing workflow.
