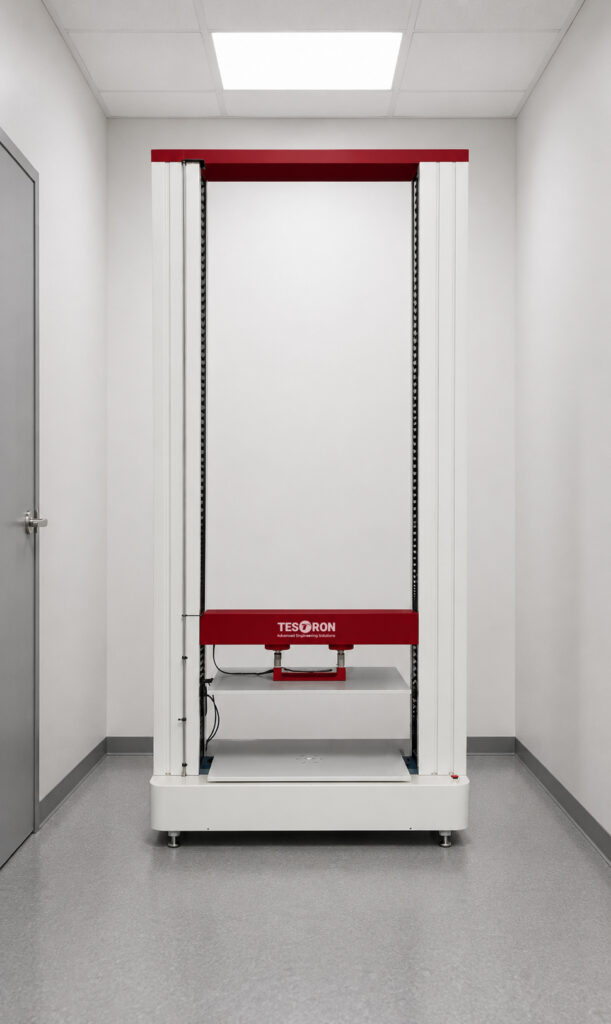

What Is a Ring Stiffness Tester in the USA?
A ring stiffness tester in the USA—also referred to as a pipe ring stiffness testing machine or ring stiffness tester machine—is a precision mechanical testing instrument designed to measure the stiffness of pipe rings under controlled diametral compression.
The test involves cutting a ring specimen from a pipe sample, placing it between two parallel plates, and applying a compressive load at a controlled rate while measuring both the applied force and the resulting deflection. The relationship between force and deflection at a defined deflection point—typically 3% of the original internal diameter—gives the ring stiffness value in kilonewtons per square meter (kN/m²).
Why Ring Stiffness Testing in the USA Matters
Ring stiffness is a fundamental structural property for buried pipe applications. When a pipe is installed underground, it must resist the soil loads, traffic loads, and hydrostatic pressures acting on it from the outside—not just the internal pressure it carries. A pipe with insufficient ring stiffness will deform, buckle, or collapse under these external loads, leading to catastrophic infrastructure failure.
Ring stiffness testing ensures:
- Pipes meet the minimum stiffness requirements defined in product standards
- Manufacturing process consistency is verified across production batches
- Incoming material quality is confirmed before installation
- Structural performance predictions for buried pipe design are based on real, certified test data
- Regulatory and contractual compliance requirements are documented and defensible
Without a properly specified ring stiffness testing machine, pipe manufacturers and quality laboratories have no objective means of verifying this critical structural property.

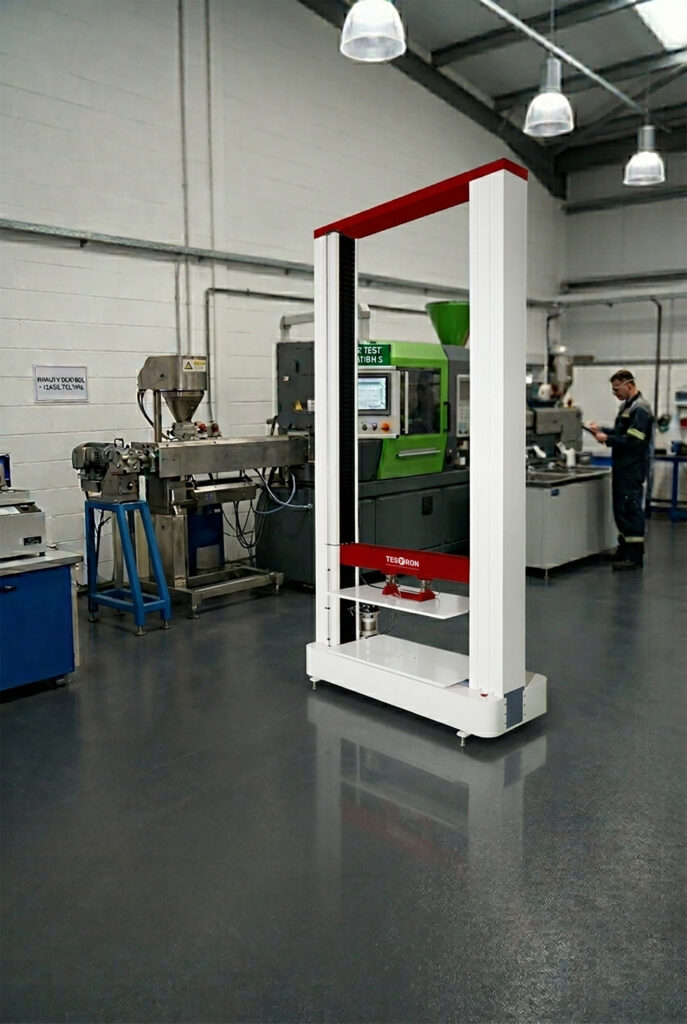

The Industry Challenge :Why Ring Stiffness Testing in the USA Is Non-Negotiable
Across the USA, thermoplastic and thermoset pipe manufacturers supply products into infrastructure markets where structural failure is simply not an option. Storm water drainage systems, sanitary sewer networks, culverts, highway drainage, and industrial buried pipe systems all depend on pipe that maintains its cross-sectional geometry under sustained external loading throughout a design life measured in decades. Reliable pipe testing equipment is essential to prove this longevity.
Municipal engineers, infrastructure contractors, and utility owners in Dallas, New York, Atlanta, Phoenix, and Seattle increasingly require certified ring stiffness test data as a mandatory part of pipe procurement specifications. Manufacturers who cannot produce this data—or who produce it from inadequately specified ring stiffness testing equipment—face:
- Rejected product submissions :Specifications requiring certified stiffness data that cannot be produced
- Failed quality audits :Non-conformances identified when stiffness documentation is absent or generated from non-compliant equipment
- Liability exposure :Field failures traced back to pipes that were never properly stiffness-verified before installation
- Lost market access :Infrastructure markets that are simply closed to manufacturers without proper testing capability
Testron Group’s pipe ring stiffness tester gives your facility the precise, repeatable, fully documented testing capability needed to compete in these demanding markets :and to protect your customers from the consequences of structural pipe failure.

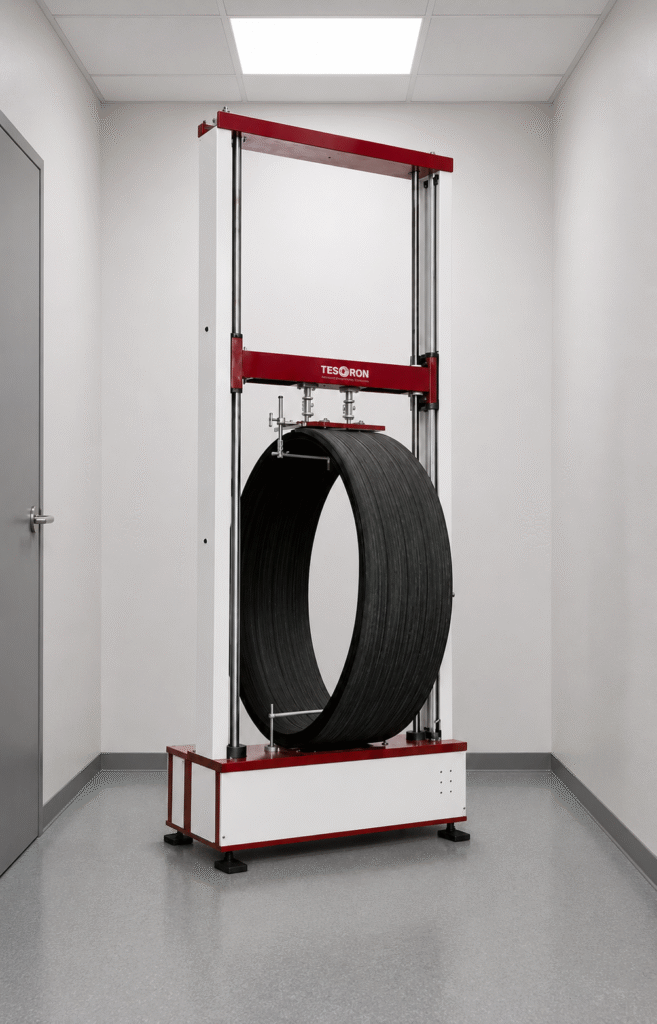

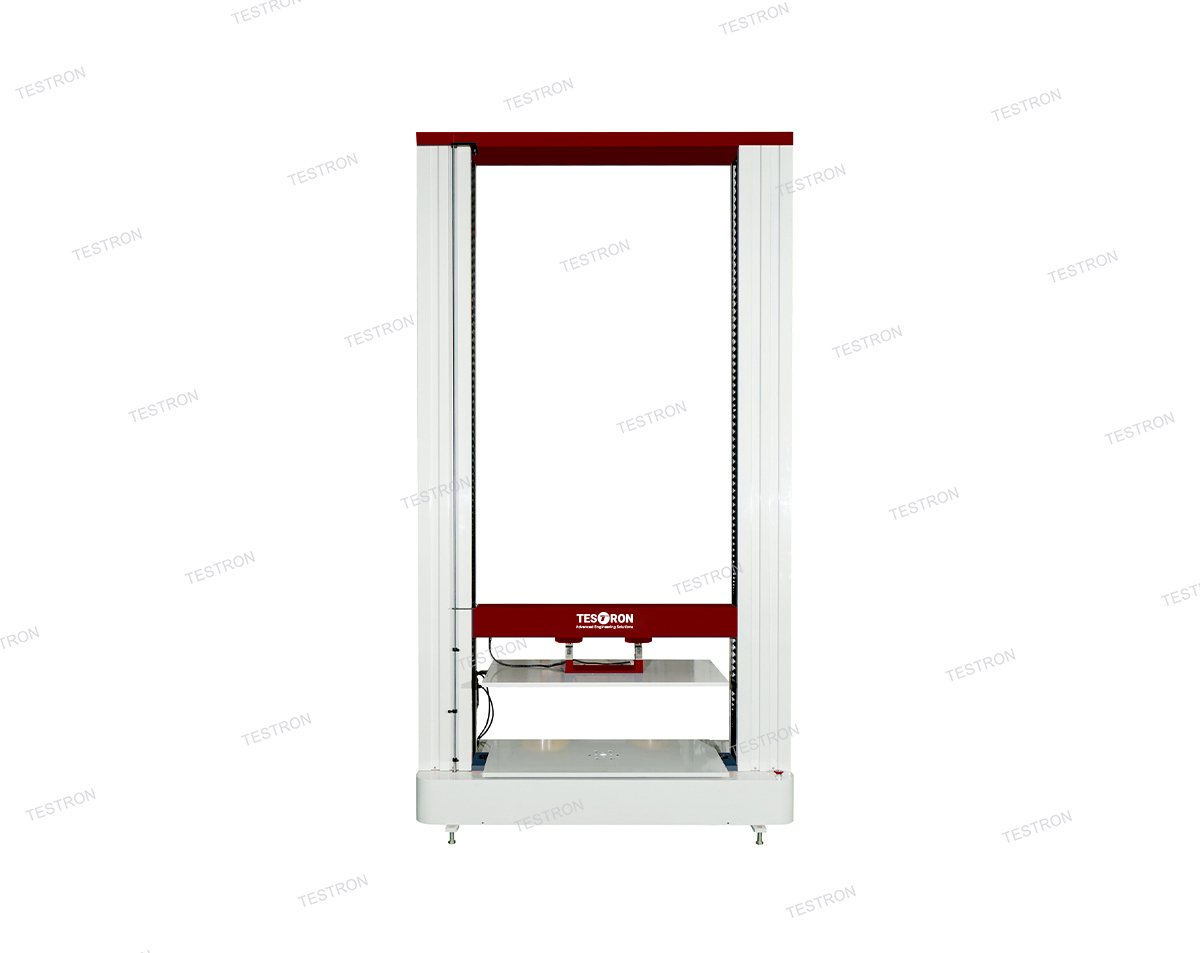

Testron Group’s Ring Stiffness Tester in the USA: Product Overview
Testron Group supplies ring stiffness testing machines built for accuracy, durability, and compliance. Our pipe ring stiffness testing equipment is engineered to deliver consistent results across the full range of pipe materials, diameters, and stiffness classes encountered in industrial and infrastructure pipe manufacturing.
Every ring stiffness tester in the USA in our range is designed with the practical demands of production quality control and third-party testing in mind: robust enough for daily use, precise enough for compliance certification, and straightforward enough for trained laboratory technicians to operate consistently.
Core Features of Testron Group’s Ring Stiffness Testing Machine
- Precision load cell :High-accuracy force measurement with traceable calibration for reliable stiffness calculation
- Accurate deflection measurement :Precision displacement transducer or encoder system for accurate diametral deflection recording
- Controlled loading rate :Motor-driven crosshead with adjustable speed for compliance with standard-specified loading rates
- Parallel plate fixtures :Machined steel compression plates ensuring uniform load distribution across the full specimen width
- Digital display :Real-time force and deflection readout for operator monitoring and manual data recording
- Data output capability :USB or RS-232 output for connection to computer-based data acquisition and reporting systems
- Specimen size range :Accommodates pipe rings across a wide range of nominal diameters
- Robust frame construction :Rigid welded steel frame minimizing compliance and ensuring load path integrity
- Safety features :Overload protection and emergency stop as standard
- Compliance-ready design :Engineered to support testing in accordance with ISO 9969, EN 9969, ASTM, and related ring stiffness standards
Technical Specifications :Ring Stiffness Tester
Specification | Standard Specification | Available Options |
Load Capacity | 5 kN – 50 kN | Higher capacity models available |
Load Measurement Accuracy | ±0.5% of indicated value | ±0.25% precision models |
Deflection Measurement Range | 0 – 500 mm | Extended range configurations |
Deflection Accuracy | ±0.1 mm | ±0.05 mm precision models |
Loading Rate Range | 10 – 50 mm/min (standard) | Fully adjustable |
Pipe Diameter Range | DN 100 – DN 1200 | Custom fixtures for larger diameters |
Specimen Width | As specified by test standard | Adjustable fixture options |
Frame Construction | Rigid welded steel | Heavy-duty configurations |
Drive System | Electromechanical motor drive | Servo-drive options |
Control System | Digital controller with display | PC interface with software |
Data Output | USB / RS-232 | Analog output options |
Power Supply | 220V / 110V, 50/60 Hz | Custom electrical specifications |
Compliance Standards | ISO 9969, EN 9969, ASTM | Additional standards on request |

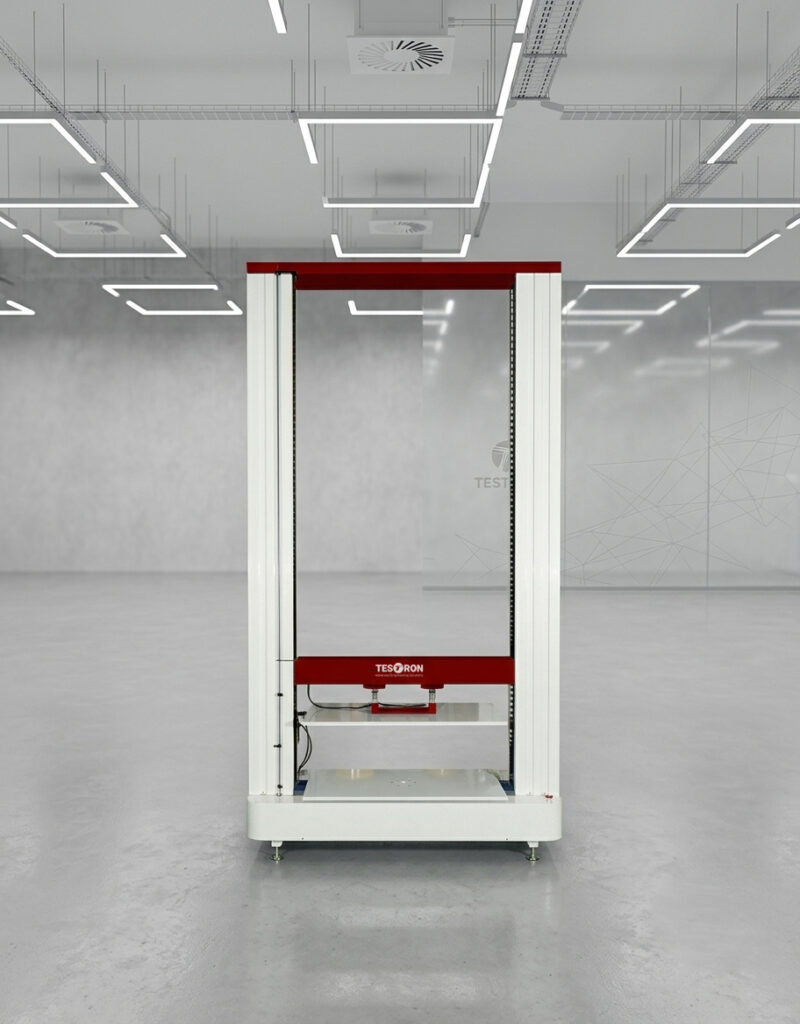

Key Standards Supported by Testron Group Ring Stiffness Testing Equipment
Testron Group’s ring stiffness tester in the USA is designed to support compliance testing in accordance with the following internationally recognized standards:
- ISO 9969 :Thermoplastics pipes :determination of ring stiffness
- EN 9969 :European equivalent standard for ring stiffness determination of thermoplastic pipes
- ASTM F2307 :Standard test method for determining the long-term hydrostatic strength of reinforced thermosetting resin pipe
- EN 1228 :Plastics piping systems :glass-reinforced thermosetting plastics (GRP) pipes :determination of the initial specific ring stiffness
- ISO 10466 :Plastics piping systems :glass-reinforced thermosetting plastics (GRP) pipes :test method to prove the resistance to initial ring deflection
- EN 14488 :Relevant standards for structural pipe testing applications
- ASTM D2412 :Standard test method for determination of external loading characteristics of plastic pipe by parallel-plate loading
Compliance with these standards is a prerequisite for pipe manufacturers supplying municipal drainage, sewer, culvert, and industrial buried pipe markets across the USA.
Understanding the Ring Stiffness Test Process
A clear understanding of the ring stiffness test methodology helps you specify the right ring stiffness testing equipment and ensure your test program generates valid, compliant results.
Step 1 :Specimen Preparation
Ring specimens are cut from the pipe at the specified width :typically the larger of 300 mm or the nominal internal diameter for most standards. Cut surfaces must be flat, parallel, and perpendicular to the pipe axis. Specimen conditioning at specified temperature and humidity is required before testing under many standards.
Step 2 :Specimen Measurement
Before testing, the internal diameter and wall thickness of each specimen are measured and recorded. These values are used in the ring stiffness calculation formula.
Step 3 :Test Setup
The ring specimen is placed centrally between the parallel compression plates of the ring stiffness testing machine. The upper plate is brought into contact with the specimen and a small preload is applied to seat the specimen correctly.
Step 4 :Load Application
The crosshead descends at the standard-specified loading rate :typically 10 mm/min to 50 mm/min depending on the applicable standard and pipe diameter. Force and deflection are recorded continuously throughout the test.
Step 5 :Stiffness Calculation
Ring stiffness (S) is calculated at 3% diametral deflection using the formula defined in the applicable standard. The result is expressed in kN/m² and compared against the minimum stiffness class requirement for the pipe product.
Step 6 :Documentation
Test results :including specimen dimensions, force-deflection data, calculated ring stiffness, and comparison with acceptance criteria :are documented to create the traceable quality record required by standards and customer specifications.
The validity of this entire process depends on the ring stiffness tester machine applying load at the correct rate and measuring data with extreme accuracy, and maintaining the geometric precision needed for valid stiffness calculation.
Ring Stiffness Tester Machine Types Available from Testron Group
- Standard Electromechanical Ring Stiffness Tester
Our standard ring stiffness testing machine uses a precision electromechanical drive system to apply load at controlled, constant rates. Digital force and deflection measurement with real-time display makes this the most widely used configuration for production quality control and routine compliance testing.
Best suited for: Plastic pipe manufacturers, quality control laboratories, routine compliance testing programs
Key advantages: Reliable, straightforward operation, competitive price point, full standard compliance - High-Capacity Ring Stiffness Testing Machine
For large-diameter pipes :particularly corrugated HDPE, GRP, and structured wall pipes used in highway drainage and industrial applications :our high-capacity ring stiffness tester in the USA provides the load capacity and specimen clearance needed to test pipes up to DN 1200 and beyond.
Best suited for: Large-diameter pipe manufacturers, infrastructure pipe suppliers, specialist testing laboratories
Key advantages: Extended load capacity, large specimen clearance, heavy-duty frame construction - Computer-Controlled Ring Stiffness Tester with Software
Our advanced ring stiffness testing equipment integrates a PC-based control and data acquisition system—enabling automated test execution, real-time force-deflection curve generation, and professional test report output.
Best suited for: High-throughput testing laboratories, R&D facilities, accredited third-party laboratories Key advantages: Automated calculation, professional reporting, reduced operator error, full audit trail
- Custom-Configured Ring Stiffness Testing Equipment
Testron Group’s engineering team designs and builds custom ring stiffness testing machines for manufacturers with non-standard pipe geometries, specialized testing requirements, or specific facility constraints.
Best suited for: Specialty pipe manufacturers, research institutions, facilities with unique standard requirements Key advantages: Fully tailored specification, bespoke fixture design, compliance with non-standard testing protocols

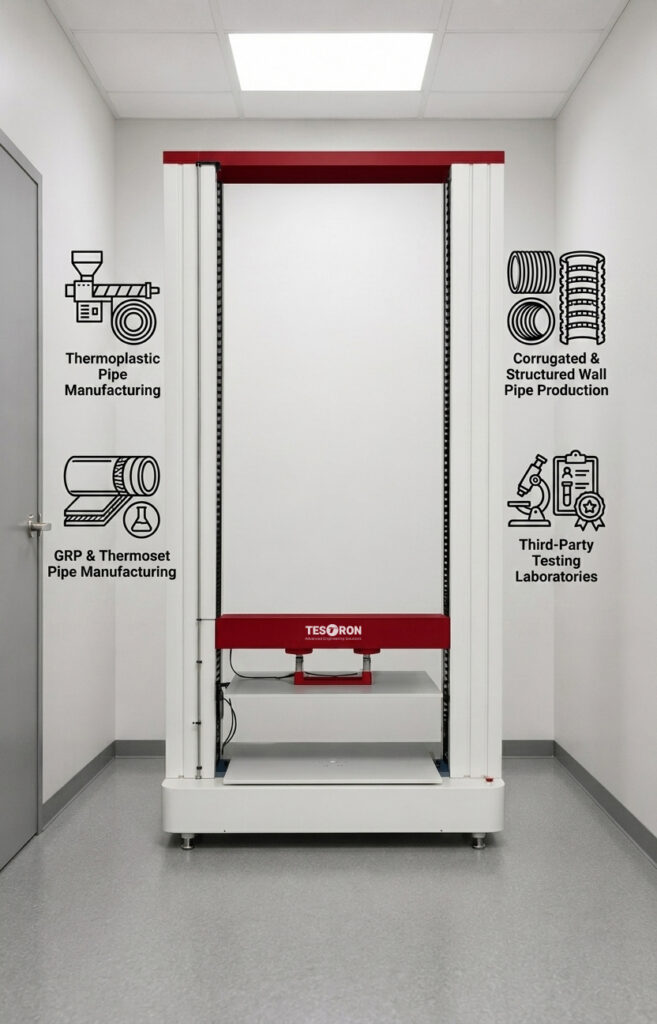

Industrial Applications :Where Testron Group Ring Stiffness Testers Are Used
- Thermoplastic Pipe Manufacturing
HDPE, UPVC, PP, and PVC-O pipe manufacturers use ring stiffness testing as a core production quality control tool. The pipe ring stiffness tester verifies that finished pipe meets the stiffness class specification :typically SN4, SN8, or SN16 :before it is released for dispatch.
- GRP and Thermoset Pipe Manufacturing
Glass reinforced plastic pipe manufacturers producing infrastructure drainage and industrial process pipe use ring stiffness testing equipment to verify structural performance of their filament-wound or centrifugally cast products against ISO and EN stiffness standards.
- Corrugated and Structured Wall Pipe Production
Manufacturers of corrugated HDPE and structured wall pipe for storm water, culvert, and highway drainage applications require high-capacity ring stiffness testing machines capable of handling large-diameter specimens with the load capacity needed for stiffer product classes.
- Third-Party Testing Laboratories
Independent testing laboratories in Houston, Chicago, New York, Los Angeles, and Dallas use Testron Group ring stiffness testing machines to provide certified pipe testing services to manufacturers, contractors, and specification authorities who require independent structural verification data.
Talk to Our Experts :From HDPE pipe manufacturers in Houston to third-party testing labs in Chicago, Testron Group’s team has the expertise to specify the right ring stiffness testing machine for your operation.
Price of Ring Stiffness Tester in the USA :Understanding the Cost Factors
Procurement teams evaluating ring stiffness tester cost need to understand what drives price variation across the market :so they can make value-based decisions rather than simply selecting the cheapest available option.
Key Factors Affecting Ring Stiffness Tester Price
- Load capacity :Higher capacity machines for large-diameter or high-stiffness-class pipes require larger frames, more powerful drives, and higher-capacity load cells
- Pipe diameter range :Wider diameter compatibility requires larger specimen clearance and adjustable or interchangeable fixture systems
- Measurement system specification :Basic digital readout versus precision encoder systems with PC interface and automated calculation software
- Drive system :Standard electromechanical drives versus servo-drive systems offering wider speed range and higher accuracy
- Software capability :Basic display versus full data acquisition, report generation, and audit trail functionality
- Customization requirements :Non-standard fixtures, specialized compliance configurations, or facility-specific modifications
Indicative Ring Stiffness Tester Cost Ranges
Configuration | Approximate Price Range |
Standard Electromechanical Ring Stiffness Tester | $8,000 – $20,000 |
Mid-Range with PC Interface | $20,000 – $40,000 |
High-Capacity Large-Diameter System | $35,000 – $70,000 |
Custom-Configured Specialist System | $50,000 – $100,000+ |
All prices are indicative. Contact Testron Group for an accurate ring stiffness tester price based on your exact pipe diameter range, capacity requirements, and test standard.

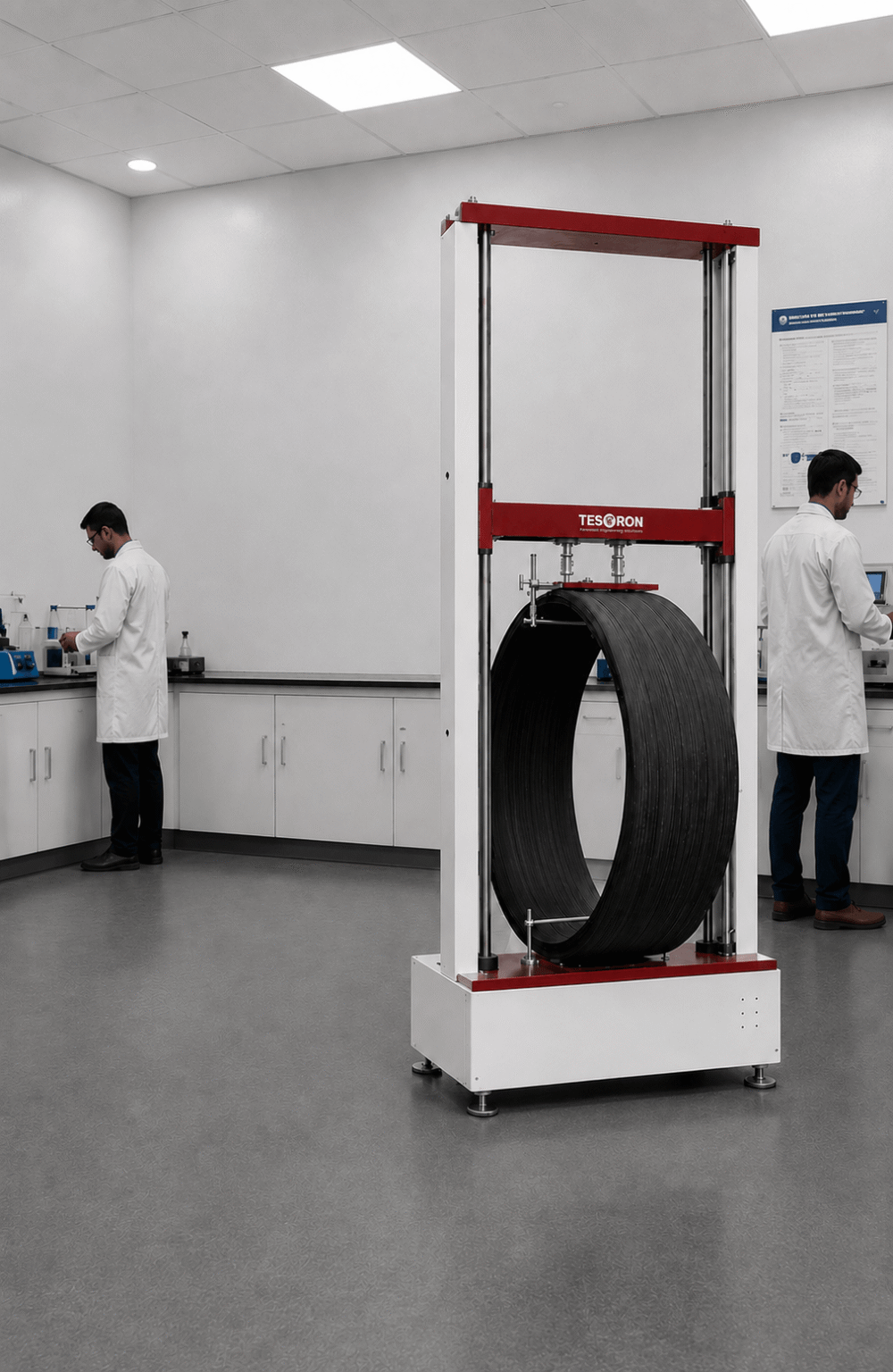

Why Choose Testron Group as Your Ring Stiffness Tester in the USA Supplier?
- Deep Material Testing Expertise
Testron Group specializes in material testing equipment, laboratory testing equipment, and quality control solutions. We are not a general scientific instrument distributor. Our team understands the specific demands of pipe testing :including the structural mechanics of ring stiffness, the nuances of different testing standards, and the practical requirements of production quality control environments.
- Comprehensive Product Range
From compact standard ring stiffness testing machines for small-diameter plastic pipe QC to high-capacity systems for large-diameter infrastructure pipe :Testron Group’s range covers every scale of operation and every pipe material category.
- Customization Capability
When standard configurations don’t match your requirements, our engineering team designs bespoke ring stiffness testing equipment to your exact specification. Non-standard pipe diameters, specialized fixture designs, unique compliance requirements :all within our engineering capability.
- USA-Wide Technical Support
Testron Group serves industrial buyers and laboratory professionals across the entire USA :including major manufacturing and infrastructure markets in Houston, Chicago, Dallas, New York, Los Angeles, Atlanta, Phoenix, and Seattle. Our technical team provides installation support, commissioning assistance, operator training, and ongoing service.
- Testron Group is a trusted ring stiffness tester manufacturer and supplier serving the USA market
- Our pipe ring stiffness testing machines support ISO 9969, EN 9969, ASTM D2412, and related international standards
- Ring stiffness testing is mandatory for pipe products supplied into buried infrastructure applications
- Ring stiffness tester cost ranges from approximately $8,000 to $100,000+ depending on capacity and configuration
- Applications span thermoplastic pipe manufacturing, GRP pipe production, third-party testing, and infrastructure procurement
- Testron Group provides USA-wide installation, commissioning, calibration support, and application expertise
Frequently Asked Questions
What pipe materials can be tested using Testron Group's ring stiffness tester in the USA?
Our ring stiffness testers are compatible with all major thermoplastic pipe materials including HDPE, UPVC, PP, and PVC-O, as well as glass reinforced plastic (GRP), corrugated structured wall pipes, and thermoset composite pipes. Contact our team to confirm fixture compatibility with your specific pipe material and diameter range.
What pipe diameters does Testron Group's ring stiffness tester accommodate?
Our standard range covers pipe nominal diameters from DN 100 to DN 1200. High-capacity configurations and custom fixture systems are available for larger diameter pipes. Contact our engineering team with your specific diameter requirements for configuration recommendations.
Which standards does Testron Group's ring stiffness testing equipment comply with?
Our ring stiffness testers are designed to support compliance testing in accordance with ISO 9969, EN 9969, ASTM D2412, EN 1228, and ISO 10466, among others. Contact our team to confirm compliance with the specific standard required for your product certification or customer requirements.
Does Testron Group offer ring stiffness testing machines with computer interface and automatic reporting?
Yes. Our advanced ring stiffness testing equipment range includes PC-based control and data acquisition systems with automated stiffness calculation, force-deflection curve output, and professional test report generation. These systems are particularly suited to high-throughput testing laboratories and accredited third-party test facilities.
How does calibration work for a ring stiffness tester, and does Testron Group provide support?
Ring stiffness tester calibration involves verification of load cell accuracy using traceable reference weights and verification of deflection measurement using calibrated reference gauges. Testron Group provides calibration documentation with every instrument and offers ongoing calibration support services to maintain your instrument's measurement traceability.
What is the typical lead time for a ring stiffness testing machine from Testron Group?
Standard configuration ring stiffness testers are typically available within 6 to 10 weeks. High-capacity and custom-configured systems require additional lead time depending on specification complexity. Our team will confirm a delivery schedule with your quotation.
Ready to specify your ring stiffness tester?
Get the Right Ring Stiffness Tester in the USA:From a Supplier Built for Serious Industrial Testing
Structural integrity in buried pipe infrastructure starts with a number: the ring stiffness value that confirms your pipe will perform under the loads it will face in service. That number is only as reliable as the ring stiffness testing machine that generated it.
Testron Group’s pipe ring stiffness testers give you the precision, the compliance capability, and the documentation integrity your quality program requires. From the load cell accuracy that ensures every force measurement is traceable, to the robust frame construction that eliminates measurement uncertainty, to the compliance support that keeps your quality management system audit-ready :every element of our ring stiffness testing equipment is built for the demands of serious industrial quality control.
