Why Thermal Shock Testing Matters
The 3TS-Series thermal shock test chamber in the USA supports critical testing across industries. Thermal shock testing replicates rapid temperature fluctuations to measure how products withstand sudden stress. This test identifies microcracking, delamination, seal failure, and electronic malfunctions, making it essential for:
- Aerospace avionics and composite materials
- Automotive ECUs, sensors, and lighting systems
- Consumer electronics such as smartphones and wearables
- Defense equipment exposed to extreme climates
- Industrial coatings, adhesives, and composites
By using a thermal shock tester, manufacturers can validate long-term durability, warranty claims, and compliance with MIL-STD, IEC, ASTM, and JEDEC standards.
3TS Series Thermal Shock Test Chamber Features
The 3TS-Series thermal shock test chamber, the 3TS Series thermal shock test cabinet is engineered for efficiency, flexibility, and accuracy. Key features include:
- Single-Chamber Design – Saves space while maintaining test consistency.

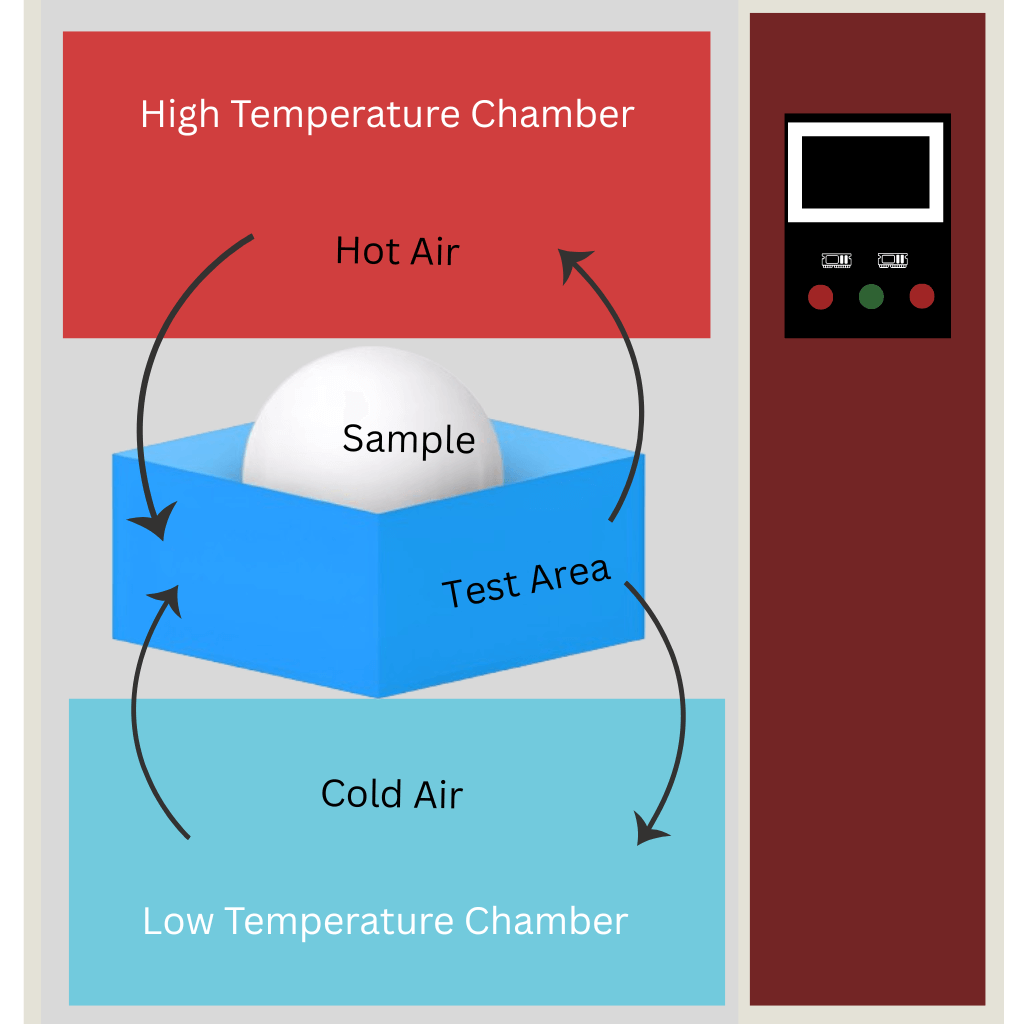

- Stationary Specimens – Products do not move between hot/cold zones, reducing mechanical stress.
- Fast Recovery Time (<15 min) – Ensures continuous and reliable testing cycles.
- Wide Temperature Range – –65 °C to +210 °C with ±0.5 °C uniformity.
- High Ramp Rates – Achieves ±5 °C/s transitions for true thermal shock replication.
- Programmable LCD Touchscreen – User-friendly control with up to 100 pre-set test programs.
- USB/Ethernet Connectivity – Remote monitoring, data logging, and test traceability.
- ISO 17025 Calibrated Sensors – Vaisala HMA6070 with ±0.01 °C accuracy.
- CE Marked & Compliant – Meets international quality and safety certifications.

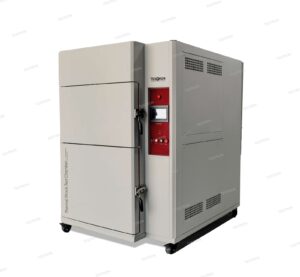

Technical Specifications of Industrial Thermal Shock Test Chamber
| Model | Internal Dimensions (mm) | Overall Dimensions (mm) | Temp. Range | Load Capacity |
|---|---|---|---|---|
| TT-3TS100H | 500×500×400 | 1150×1950×2100 | –65 °C to +210 °C | 10 kg |
| TT-3TS210H | 700×600×500 | 1350×2100×2200 | –65 °C to +210 °C | 15 kg |
| TT-3TS300H | 700×780×550 | 1350×2250×2300 | –65 °C to +210 °C | 25 kg |
| TT-3TS500H | 900×800×700 | 2500×2250×2150 | –65 °C to +210 °C | 35 kg |
These small to large thermal shock chambers are ideal for R&D labs and industrial-scale production testing.
Industry Applications & Benefits of Thermal Shock Tester
- Aerospace & Defense
Validate avionics, sensors, sealants, and composite panels under sudden environmental transitions using the 3TS-Series thermal shock test chamber in the USA. - Automotive Industry
Stress-test ECUs, sensors, and lighting components to meet global ISO/SAE reliability Sstandards with a certified thermal shock temperature chamber in the USA. - Consumer Electronics
Ensure smartphones, wearables, and circuit boards survive thermal cycling during real-world use. - Industrial Materials & Coatings
Examine adhesion, microcracking, and fatigue resistance in composites, adhesives, and laminates. - Medical Devices
Verify that life-saving equipment operates flawlessly in extreme climates.
Thermal Shock Test Chamber Cost in the USA
The 3TS-Series thermal shock test chamber cost depends on:
- Size & capacity (100L to 500L+ models)
- Customization (sensors, ports, software integration)
- Cooling/heating technology (R404A/R23 refrigerants, nichrome heaters)
- Connectivity & automation (Ethernet, USB, remote monitoring)
Testron offers competitive thermal shock test chamber prices in the USA, with transparent quotations and long-term service agreements. Compared to other thermal shock test chamber manufacturers, Testron provides lower total cost of ownership (TCO) due to energy efficiency and reduced downtime.
Energy-Efficient & Sustainable Design
The 3TS series thermal shock test chamber integrates eco-friendly refrigerants (R404A/R23) and nichrome wire heaters for efficient operation. Unlike traditional dual-zone chambers, the single-room design reduces compressor usage and power draw, lowering energy costs by up to 20% annually.
For companies pursuing ISO14001 environmental certification or green manufacturing compliance, Testron Group’s chambers offer a sustainable testing solution without inflating operational budgets.
Calibration & Quality Assurance
Calibration precision is essential in thermal shock testing. Testron ensures every 3TS-Series thermal shock test chamber undergoes factory-level calibration (ISO 17025) before delivery.
- Sensors: Vaisala HMA6070 with ±0.01 °C accuracy
- Controllers: PID programmable for precise ramp rate control
- Post-Installation Services: On-site calibration, annual maintenance, and emergency repairs in the USA
This ensures data integrity, repeatability, and compliance with aerospace and automotive quality standards.
Accessories & Configurations
Testron provides a wide range of 3TS-Series thermal shock test chamber accessories:
- Refrigerants (R404A & R23 – DuPont)
- Nichrome Heaters (2000W+)
- Capacitive Temperature Sensors (Vaisala HMA6070)
- Cable Glands & Ports for OEM installations
- Custom Shelves & Exhaust Ports for large specimens
This flexibility makes Testron one of the most versatile 3TS-Series thermal shock test chamber manufacturers in the USA.
Data Management & Connectivity
- Up to 100 programmable test profiles
- Remote monitoring via Ethernet
- USB storage for test data transfer
- MES integration for industrial quality labs
Ideal for aerospace contractors, automotive OEMs, and defense labs needing real-time reporting and traceability.
Why Choose Testron as Your Thermal Shock Test Chamber Manufacturer?
- Global Reach – Offices in the USA, UAE, and Asia
- Manufacturing Expertise – Decades of environmental chamber engineering
- Customization – From small thermal shock test chambers to industrial-scale units
- Accuracy & Compliance – ISO 17025, CE, and IEC certification
- Competitive Pricing – Affordable thermal shock test chamber cost in the USA
- After-Sales Support – Local service, calibration, and spare parts availability
Frequently Asked Questions
What is the standard temperature range of the 3TS chamber?
–65 °C to +210 °C, with ramp rates up to ±5 °C/s.
Do specimens move during testing?
No, specimens remain stationary for accurate results and minimal mechanical stress.
What is the typical thermal shock test chamber cost in the USA?
It depends on model capacity and options. Small chambers start competitively, while industrial thermal shock test chambers cost more but offer higher throughput.
Are custom thermal shock test cabinets available?
Yes, Testron provides both standard models and custom-engineered systems.
Who are the ideal users of the 3TS thermal shock tester?
Aerospace, automotive, defense, electronics, materials testing, and medical device industries.
